Product Summary

The SN65LVDS250 and SN65LVDT250 are 4x4 nonblocking crosspoint switches in a flow-through pin-out allowing for ease

in PCB layout. Low-voltage differential signaling (LVDS) is used to achieve a high-speed data throughput while using low

power.Each of the output drivers includes a 4:1 multiplexer to allow any input to be routed to any output. Internal signal

paths are fully differential to achieve the high signaling speeds while maintaining low signal skews.The SN65LVDT250

 incorporates 110-Ω termination resistors for those applications where board space is a premium.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

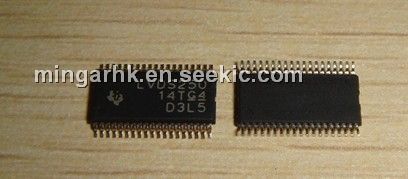

SN65LVDS250DBT
SN65LVDS250DBT

Texas Instruments

Analog & Digital Crosspoint ICs 2.0 Gbps 4x4 Crosspoint Switch

Data Sheet

0-1: $10.16
1-25: $8.93
25-100: $7.29
100-250: $7.15
SN65LVDS250DBTG4
SN65LVDS250DBTG4

Texas Instruments

Analog & Digital Crosspoint ICs 2.0 Gbps 4x4 Crosspoint Switch

Data Sheet

0-1: $10.16
1-25: $9.71
25-100: $7.29
100-250: $7.15
SN65LVDS250DBTR
SN65LVDS250DBTR

Texas Instruments

Analog & Digital Crosspoint ICs 2.0 Gbps 4x4 Crosspoint Switch

Data Sheet

0-1604: $5.05
1604-2000: $5.00
SN65LVDS250DBTRG4
SN65LVDS250DBTRG4

Texas Instruments

Analog & Digital Crosspoint ICs 2.0 Gbps 4x4 Crosspoint Switch

Data Sheet

0-1604: $5.05
1604-2000: $5.00
