Product Summary

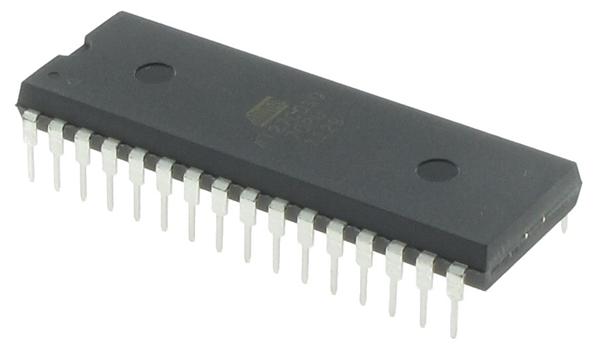

The AT27C010 is a low-power, high-performance 1,048,576-bit one-time programma-ble read-only memory (OTP EPROM) organized as 128K by 8 bits. They require onlyone 5V power supply in normal read mode operation. Any byte can be accessed inless than 45 ns, eliminating the need for speed reducing WAIT states on high-perfor-mance microprocessor systems.In read mode, the AT27C010 typically consumes only 8 mA. Standby mode supplycurrent is typically less than 10 μA.
Parametrics
Absolute Maximum Ratings:
(1)Temperature Under Bias:-55℃ to +125℃;
(2)Storage Temperature:-65℃ to +150℃;
(3)Voltage on Any Pin withRespect to Ground:-2.0V to +7.0V(1);
(4)Voltage on A9 withRespect to Ground:-2.0V to +14.0V(1);
(5)VPP Supply Voltage withRespect to Ground:-2.0V to +14.0V(1)
Note:1. Minimum voltage is -0.6V DC which may undershoot to -2.0V for pulses of less than 20 ns. Maximum output pin voltage isVCC + 0.75V DC which may overshoot to +7.0 volts for pulses of less than 20 ns.
Features
(1)Fast Read Access Time – 45 ns;
(2)Low-Power CMOS Operation:100 μA Max Standby;25 mA Max Active at 5 MHz;
(3)JEDEC Standard Packages:32-lead PDIP;32-lead PLCC;32-lead TSOP;
(4)5V ± 10% Supply;
(5)High Reliability CMOS Technology:2000V ESD Protection;200 mA Latchup Immunity;
(6)Rapid Programming Algorithm – 100 μs/Byte (Typical);
(7)CMOS and TTL Compatible Inputs and Outputs;
(8)Integrated Product Identification Code;
(9)Industrial Temperature Range;
(10)Green (Pb/Halide-free) Packaging Option
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271715316772.jpg">
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

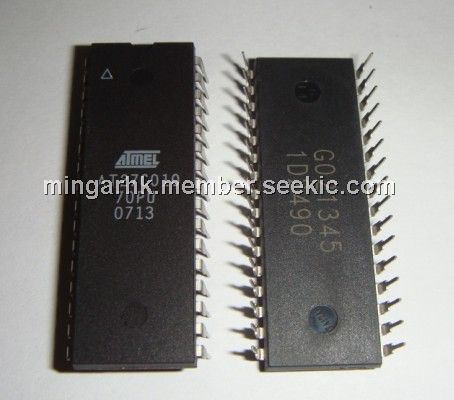

AT27C010-70PU |
