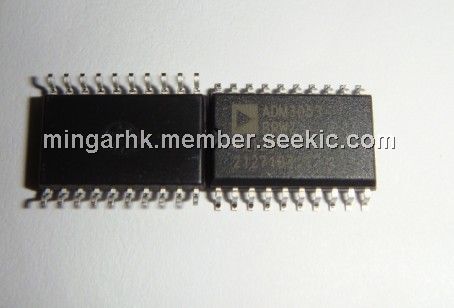

Product Summary

The ADM3053 is an isolated controller area network (CAN)physical layer transceiver with an integrated isolated dc-to-dcconverter.It complies with the ISO 11898 standard.The device employs Analog Devices, Inc., iCoupler? technologyto combine a 2-channel isolator, a CAN transceiver, andAnalog Devices isoPower? dc-to-dc converter into a singleSOIC surface mount package. An on-chip oscillator outputs a pairof square waveforms that drive an internal transformer to provideisolated power. The device is powered by a single 5 V supplyrealizing a fully isolated CAN solution.

Parametrics

ABSOLUTE MAXIMUM RATINGS(TA = 25°C, unless otherwise noted. All voltages are relative totheir respective ground):(1)VCC:-0.5 V to +6 V; (2)VIO:-0.5 V to +6 V; (3)Digital Input Voltage, TxD:-0.5 V to VIO + 0.5 V; (4)Digital Output Voltage, RxD:-0.5 V to VIO + 0.5 V; (5)CANH, CANL:-36 V to +36 V; (6)VREF:-0.5 V to +6 V; (7)RS:-0.5 V to +6 V; (8)Operating Temperature Range:-40℃ to +85℃; (9)Storage Temperature Range:-55℃ to +150℃; (10)ESD (Human Body Model):3 kV; (11)Lead Temperature:Soldering (10 sec):300℃;Vapor Phase (60 sec):215℃;Infrared (15 sec):220℃; (12)θJA (Thermal Impedance):53℃/W; (13)TJ (Junction Temperature):130℃

Features

(1)2.5 kV rms signal and power isolated CAN transceiver; (2)isoPower integrated isolated dc-to-dc converter; (3)5 V operation on VCC; (4)5 V or 3.3 V operation on VIO; (5)Complies with ISO 11898 standard; (6)High speed data rates of up to 1 Mbps; (7)Unpowered nodes do not disturb the bus; (8)Connect 110 or more nodes on the bus; (9)Slope control for reduced EMI; (10)Thermal shutdown protection; (11)High common-mode transient immunity: >25 kV/μs; (12)Safety and regulatory approvals (pending)UL recognition,2500 V rms for 1 minute per UL 1577;VDE Certificate of Conformity;DIN EN 60747-5-2 (VDE 0884 Rev.2): 2003-01; (13)Industrial operating temperature range (-40℃ to +85℃); (14)Available in wide-body, 20-lead SOIC package

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271342533318.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADM3053BRWZ
ADM3053BRWZ


IC TXRX ISOLATED CAN 20SOIC

Data Sheet

0-1: $6.69
1-10: $6.08
10-100: $5.17
100-250: $4.71
250-500: $4.41
500-1000: $4.05
ADM3053BRWZ-REEL7
ADM3053BRWZ-REEL7


IC TXRX ISOLATED CAN 20SOIC

Data Sheet

0-400: $4.71
