Product Summary
For switching regulator and generalpurpose applications
Parametrics
Absolute maximum ratings:(1)Collector-base voltage:500V; (2)Collector-emitter voltage:400V; (3)Emitter-base voltage:10V; (4)Collector current:12A; (5)Collector current-peak:24A; (6)Base current:4A; (7)Collector power dissipation:100W; (8)Junction temperature:150℃; (9)Storage temperature:-55℃ to 150℃
Features
(1)With TO-3PN package; (2)High voltage; (3)High speed switching
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/2012710234146295.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

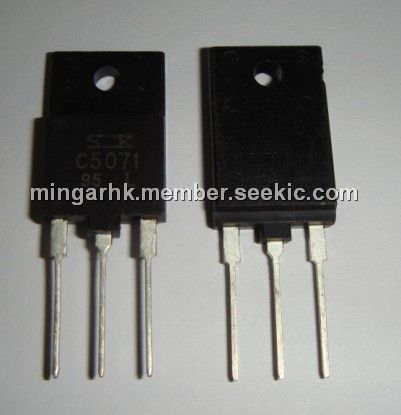

 2SC5071 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
