Product Summary

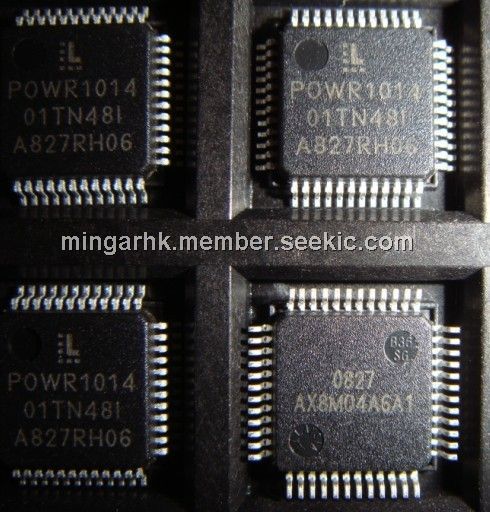

Lattice’s Power Manager II ispPAC-POWR1014/A is a general-purpose power-supply monitor and sequence controller, incorporating both in-system programmable logic and in-system programmable analog functions implemented in non-volatile E2CMOS technology. The ispPAC-POWR1014/A device provides 10 independent analog input channels to monitor up to 10 power supply test points. Each of these input channels has two independently programmable comparators to support both high/low and in-bounds/out-of-bounds (window-compare) monitor functions. Four general-purpose digital inputs are also provided for miscellaneous control functions.
Parametrics
Absolute Maximum Ratings:
(1)VCCD,Core supply: -0.5~4.5 V;
(2)VCCA,Analog supply: -0.5~4.5 V;
(3)VCCINP,Digital input supply (IN[1:4]): -0.5~6 V;
(4)VCCJ,JTAG logic supply: -0.5~6 V;
(5)VCCPROG, E2 programming supply :-0.5~4 V;
(6)VIN,Digital input voltage (all digital I/O pins) :-0.5~6 V;
(7)VMON,VMON input voltage: -0.5~6V;
(8)VTRI,Voltage applied to tri-stated pins:HVOUT[1:2]: -0.5~11 V;OUT[3:14] :-0.5~6V;
(9)ISINKMAXTOTAL,Maximum sink current on any output: 23 mA;
(10)TS,Storage temperature: -65~150℃;
(11)TA,Ambient temperature: -65~125℃
Features
(1)Monitor and Control Multiple Power Supplies;
(2)Embedded PLD for Sequence Control;
(3)Embedded Programmable Timers;
(4)Analog Input Monitoring;
(5)High-Voltage FET Drivers;
(6)2-Wire (I2C/SMBus. Compatible) Interface;
(7)3.3V Operation, Wide Supply Range 2.8V to 3.96V
