Product Summary

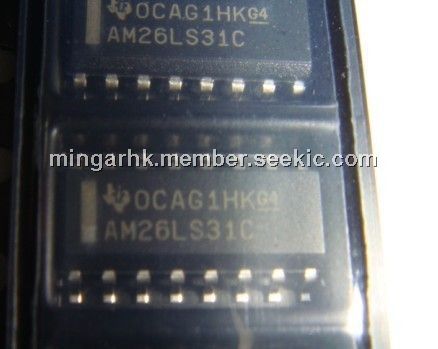

The AM26LS31C is a quadruple complementary-output line driver designed to meet the requirements ofANSI TIA/EIA-422-B and ITU (formerly CCITT) Recommendation V.11. The 3-state outputs have high-currentcapability for driving balanced lines such as twisted-pair or parallel-wire transmission lines, and they providea high-impedance state in the power-off condition. The enable function is common to all four drivers and offersthe choice of an active-high or active-low enable (G, G) input. Low-power Schottky circuitry reduces powerconsumption without sacrificing speed.

Parametrics

absolute maximum ratings over operating free-air temperature range (unless otherwise noted):(1)Supply voltage, VCC:7 V; (2)Input voltage, VI:7 V; (3)Output off-state voltage:5.5 V; (4)Package thermal impedance,θJA: D package113℃/W;N package:78℃/W; (5)Storage temperature range, Tstg:–65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds:260℃

Features

(1)Meets or Exceeds the Requirements of ANSI TIA/EIA-422-B and ITURecommendation V.11; (2)Operates From a Single 5-V Supply; (3)TTL Compatible; (4)Complementary Outputs; (5)High Output Impedance in Power-Off Conditions; (6)Complementary Output-Enable Inputs

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271344943142.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AM26LS31C
AM26LS31C

Other


Data Sheet

Negotiable
AM26LS31CD
AM26LS31CD

Texas Instruments

Buffers & Line Drivers Quad Diff

Data Sheet

0-1: $0.47
1-25: $0.43
25-100: $0.32
100-250: $0.27
AM26LS31CDBR
AM26LS31CDBR

Texas Instruments

Buffers & Line Drivers Quad Diff Line Drvr

Data Sheet

0-1: $0.44
1-25: $0.37
25-100: $0.30
100-250: $0.22
AM26LS31CDBRE4
AM26LS31CDBRE4

Texas Instruments

Buffers & Line Drivers Quad Diff Line Drvr

Data Sheet

0-1: $0.44
1-25: $0.37
25-100: $0.30
100-250: $0.22
AM26LS31CDE4
AM26LS31CDE4

Texas Instruments

Buffers & Line Drivers Quad Diff

Data Sheet

0-1: $0.54
1-25: $0.45
25-100: $0.36
100-250: $0.27
AM26LS31CDBRG4
AM26LS31CDBRG4

Texas Instruments

Bus Transmitters Quad Diff Line Drvr

Data Sheet

0-1: $0.44
1-25: $0.37
25-100: $0.30
100-250: $0.22
AM26LS31CDG4
AM26LS31CDG4

Texas Instruments

Buffers & Line Drivers Quad Diff Line Drvr

Data Sheet

0-1: $0.54
1-25: $0.45
25-100: $0.36
100-250: $0.27
AM26LS31CNSR
AM26LS31CNSR

Texas Instruments

Buffers & Line Drivers Quad Diff Line Drvr

Data Sheet

0-1: $0.58
1-25: $0.46
25-100: $0.42
100-250: $0.37
