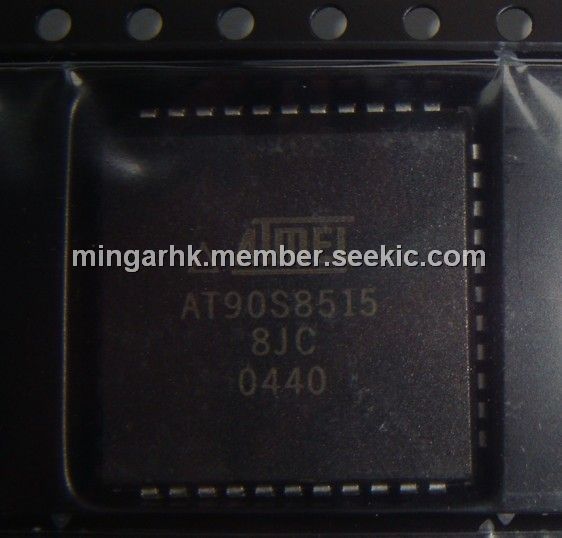

AT90S8515-8JC

Product Summary

The AT90S8515-8JC is a kind of low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. The device achieves throughputs approaching 1 MIPS per MHz with powerful instructions in a single clock cycle, which allows the system designer to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. Therefore, the resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

Parametrics

Absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃ ; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin except RESET with Respect to Ground: -1.0V to VCC + 0.5V; (4)Voltage on RESET with Respect to Ground: -1.0V to +13.0V; (5)Maximum Operating Voltage: 6.6V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.

Features

Features: (1)AVR - High Performance and Low Power RISC Architecture; (2)118 Powerful Instructions - Most Single Clock Cycle Execution; (3)8K bytes of In-System Reprogrammable Flash: SPI Serial Interface for Program Downloading; Endurance: 1,000 Write/Erase Cycles; (4)512 bytes EEPROM: Endurance: 100,000 Write/Erase Cycles; (5)512 bytes Internal SRAM; (6)32 x 8 General Purpose Working Registers; (7)32 Programmable I/O Lines; (8)Programmable Serial UART; (9)SPI Serial Interface; (10)VCC: 2.7 - 6.0V; (11)Fully Static Operation: 0 - 8 MHz 4.0 - 6.0V; 0 - 4 MHz 2.7 - 4.0V; (12)Up to 8 MIPS Throughput at 8 MHz; (13)One 8-Bit Timer/Counter with Separate Prescaler; (14)One 16-Bit Timer/Counter with Separate Prescaler and Compare and Capture Modes; (15)Dual PWM; (16)External and Internal Interrupt Sources; (17)Programmable Watchdog Timer with On-Chip Oscillator; (18)On-Chip Analog Comparator; (19)Low Power Idle and Power Down Modes; (20)Programming Lock for Software Security.

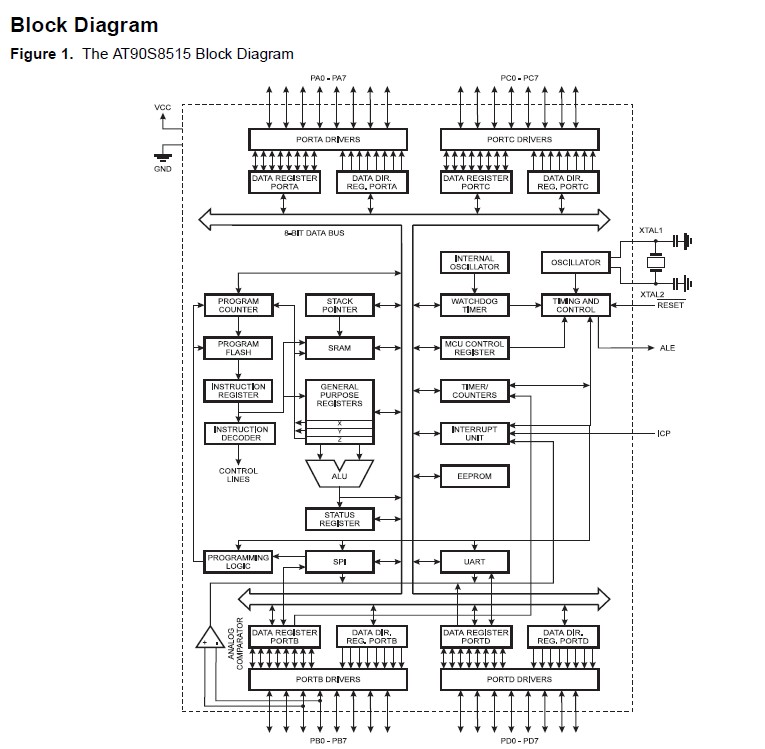

Diagrams
