Product Summary

The ADuM120x are dual-channel digital isolators based on Analog Devices’ iCoupler? technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices.

Parametrics

ABSOLUTE MAXIMUM RATINGS(Ambient temperature = 25℃, unless otherwise noted.): (1)Storage Temperature:-55℃ to 150℃; (2)Ambient Operating Temperature:-40℃ to 105℃; (3)Supply Voltages:-0.5V to 7.0V; (4)Input Voltage:-0.5 to VDDI + 0.5V; (5)Output Voltage:-0.5V to VDDO + 0.5V; (6)Average Output Current, per Pin:-35mA to +35mA; (7)Common-Mode Transients:-100kV/μs to +100kV/μs

Features

(1)Narrow body SOIC 8-lead package; (2)Low power operation; (3)5 V operation; (4)1.1 mA per channel maximum @ 0 Mbps to 2 Mbps; (5)3.7 mA per channel maximum @ 10 Mbps; (6)8.2 mA per channel maximum @ 25 Mbps; (7)3 V operation; (8)0.8 mA per channel maximum @ 0 Mbps to 2 Mbps; (9)2.2 mA per channel maximum @ 10 Mbps; (10)4.8 mA per channel maximum @ 25 Mbps; (11)Bidirectional communication; (12)3 V/5 V level translation; (13)High temperature operation: 105℃; (14)High data rate: dc to 25 Mbps (NRZ); (15)Precise timing characteristics; (16)3 ns maximum pulse-width distortion; (17)3 ns maximum channel-to-channel matching; (18)High common-mode transient immunity: > 25 kV/μs; (19)Safety and regulatory approvals; (20)UL recognition; (21)2500 V rms for 1 minute per UL 1577; (22)CSA component acceptance notice #5A; (23)VDE certificate of conformity; (24)DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01; (25)DIN EN 60950 (VDE 0805): 2001-12; DIN EN 60950: 2000; (26)VIORM = 560 V peak

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271343346431.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

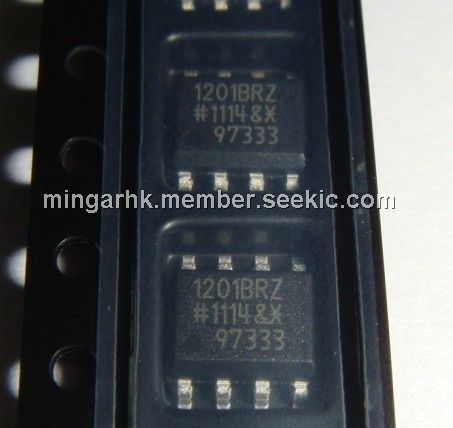

ADUM1201BRZ
ADUM1201BRZ

IC DIGITAL ISOLATOR 2CH 8-SOIC
Data Sheet
0-98: $2.14
ADUM1201BRZ-RL7
ADUM1201BRZ-RL7

IC ISOLATOR DIGITAL DUAL 8-SOIC
Data Sheet
0-1: $2.74
1-10: $2.45
10-25: $2.20
25-100: $2.01
100-250: $1.82
250-500: $1.63
