Product Summary

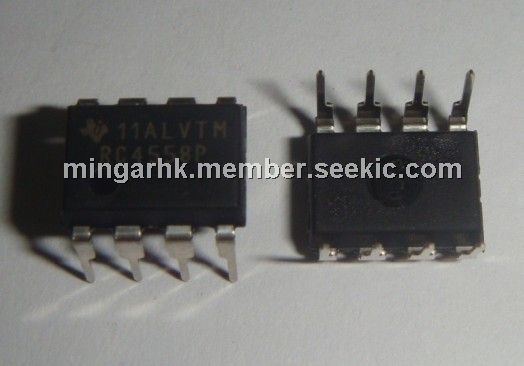

The RC4558 device is a dual general-purpose operational amplifier, with each half electrically similar to the μA741, except that offset null capability is not provided.The high common-mode input voltage range and the absence of latch-up make this amplifier ideal for voltage-follower applications. The device is short-circuit protected, and the internal frequency compensation ensures stability without external components.

Parametrics

Absolute maximum ratings over operating free-air temperature range (unless otherwise noted):
(1)Supply voltage (see Note 1): VCC:+18 V;VCC:-18 V;
(2)Differential input voltage, VID (see Note 2):±30 V;
(3)Input voltage, VI (any input, see Notes 1 and 3):±15 V;
(4)Duration of output short circuit to ground, one amplifier at a time (see Note 4):Unlimited;
(5)Package thermal impedance,θJA (see Notes 5 and 6): P package85℃/W;
(6)Operating virtual junction temperature, TJ:150℃;
(7)Storage temperature range, Tstg:-65℃ to 150℃

Features

(1)Continuous Short-Circuit Protection;
(2)Wide Common-Mode and Differential Voltage Ranges;
(3)No Frequency Compensation Required;
(4)Low Power Consumption;
(5)No Latch-Up;
(6)Unity-Gain Bandwidth:3 MHz Typ;
(7)Gain and Phase Match Between Amplifiers;
(8)Low Noise:8 nV/√Hz Typ at 1 kHz

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/2012811214688.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RC4558P
RC4558P

Texas Instruments

Operational Amplifiers - Op Amps High Preformance

Data Sheet

0-1: $0.22
1-25: $0.16
25-100: $0.12
100-250: $0.11
RC4558PSRE4
RC4558PSRE4

Texas Instruments

Operational Amplifiers - Op Amps Dual General-Purpose Op Amp

Data Sheet

0-1: $0.22
1-25: $0.14
25-100: $0.12
100-250: $0.10
RC4558PW
RC4558PW

Texas Instruments

Operational Amplifiers - Op Amps Dual General-Purpose Op Amp

Data Sheet

0-1: $0.17
1-25: $0.13
25-100: $0.11
100-250: $0.09
RC4558PWG4
RC4558PWG4

Texas Instruments

Operational Amplifiers - Op Amps Dual Gen-Purp Op Amp

Data Sheet

0-1: $0.17
1-25: $0.13
25-100: $0.11
100-250: $0.09
RC4558PWRE4
RC4558PWRE4

Texas Instruments

Operational Amplifiers - Op Amps Dual General-Purpose Op Amp

Data Sheet

Negotiable
RC4558PSRG4
RC4558PSRG4

Texas Instruments

Operational Amplifiers - Op Amps Dual Gen-Purp Op Amp

Data Sheet

0-1: $0.34
1-25: $0.20
25-100: $0.16
100-250: $0.12
RC4558PSR
RC4558PSR

Texas Instruments

Operational Amplifiers - Op Amps Dual GP Op Amp

Data Sheet

0-1: $0.30
1-25: $0.17
25-100: $0.14
100-250: $0.10
RC4558PWRG4
RC4558PWRG4

Texas Instruments

Operational Amplifiers - Op Amps Dual General-Purpose Op Amp

Data Sheet

Negotiable
