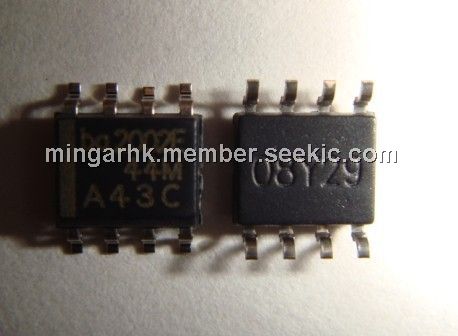

Product Summary

The BQ2002E and bq2002G Fast-Charge ICs are low-cost CMOS bat-tery-charge controllers providing reli-able charge termination for both NiCdand NiMH battery applications. Con-trolling a current-limited or con-stant-current supply allows thebq2002E/G to be the basis for a cost-effective stand-alone or system-inte-grated charger. The bq2002E/G inte-grates fast charge with optional top-offand pulsed- trickle control in a singleIC for charging one or more NiCd orNiMH battery cells.

Parametrics

Absolute Maximum Ratings:
(1)VCC relative to VSS:-0.3 to 7.0V;
(2)DC voltage applied on any pinexcluding VCC relative to VSS:-0.3 to 7.0V;
(3)Operating ambient temperature:70℃(Commercial);
(4)Storage temperature:-40℃ to +85℃;
(5)Soldering temperature:+260℃(10 sec max);
(6)Temperature under bias:-40℃ to +85℃

Features

(1)Fast charge of nickel cadmiumor nickel-metal hydride batteries; (2)Direct LED output displayscharge status; (3)Fast-charge termination by -V,maximum voltage,maximum temperature, and maximum time; (4)Internal band-gap voltage reference; (5)Optional top-off charge; (6)Selectable pulse trickle chargerates; (7)Low-power mode; (8)8-pin 300-mil DIP or 150-mil SOIC

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20127175293151.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BQ2002ESN
BQ2002ESN
Texas Instruments
Battery Management NiCd/NiMH Gating Charge Mngmnt IC
Data Sheet
0-1: $1.48
1-25: $1.23
25-100: $1.08
100-250: $0.94
BQ2002ESNG4
BQ2002ESNG4
Texas Instruments
Battery Management NiCd/NiMH Gating Charge Mngmnt IC
Data Sheet
0-1: $1.31
1-25: $1.20
25-100: $0.83
100-250: $0.82
BQ2002ESNTR
BQ2002ESNTR
Texas Instruments
Battery Management NiCd/NiMH Gating Charge Mngmnt IC
Data Sheet
0-1940: $0.66
1940-2000: $0.65
2000-2500: $0.65
2500-10000: $0.63
BQ2002ESNTRG4
BQ2002ESNTRG4
Texas Instruments
Battery Management NiCd/NiMH Charge Controller
Data Sheet
0-1940: $0.66
1940-2000: $0.65
2000-2500: $0.65
2500-10000: $0.63
