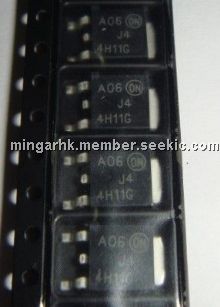

Product Summary
Designed for general purpose power and switching such as output ordriver stages in applications such as switching regulators, converters,and power amplifiers.
Parametrics
MAXIMUM RATINGS:
(1)Collector-Emitter Voltage:80VdcEmitter; (2)Base Voltage:5Vdc; (3)Collector Current-Continuous:8Adc;Peak16Adc; (4)Total Power Dissipation@ TC = 25°C:20W/℃;Derate above 25℃:0.16W/℃; (5)Total Power Dissipation (Note 1):@ TA = 25℃:1.75W/℃;Derate above 25℃:0.014W/℃; (6)Operating and Storage JunctionTemperature Range:-55℃ to +150℃
Features
(1)Lead Formed for Surface Mount Application in Plastic Sleeves(No Suffix); (2)Straight Lead Version in Plastic Sleeves (“-1” Suffix); (3)Electrically Similar to Popular D44H/D45H Series; (4)Low Collector Emitter Saturation Voltage-VCE(sat) = 1.0 Volt, Max @ 8.0 Amperes; (5)Fast Switching Speeds; (6)Complementary Pairs Simplifies Designs; (7)Epoxy Meets UL 94 V-0 @ 0.125 in; (8)ESD Ratings: Human Body Model, 3B u 8000 V;Machine Model, Cu 400 V; (9)Pb-Free Packages are Available
