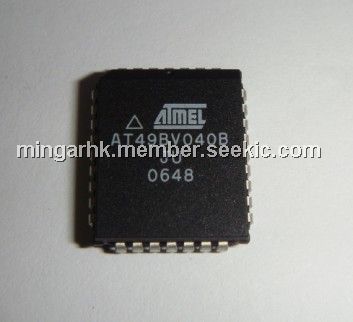

AT49BV040B-JU

4-megabit (512K x 8) Flash Memory

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.10~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.10~2.00

PartNumber:: AT49BV040B-JU

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kaisy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-17

From Other Seller

Part Number:AT49BV040B-JU
US $1.10 - 2.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT49BV040B is a 2.7V to 5.5V in-system reprogrammable Flash Memory. Its4 megabits of memory is organized as 524,288 words by 8 bits. Manufactured withAtmel’s advanced nonvolatile CMOS technology, the device offers an access time of70 ns (VCC = 2.7V to 3.6V) and an access time of 55 ns (VCC = 4.5V to 5.5V). Thepower dissipation over the industrial temperature range with VCC = 2.7V to 3.6V is 72mW and is 110 mW with VCC = 4.5V to 5.5V.When the device is deselected, the CMOS standby current is less than 30 μA.

Parametrics

Absolute Maximum Ratings:
(1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages(including NC Pins)with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltageswith Respect to Ground:-0.6V to VCC + 0.6V; (5)Voltage on A9with Respect to Ground:-0.6V to +10.0V

Features

(1)Single Supply for Read and Write: 2.7V to 5.5V; (2)Fast Read Access Time – 70 ns (VCC = 2.7V to 3.6V); 55 ns (VCC = 4.5V to 5.5V); (3)Internal Program Control and Timer; (4)Flexible Sector Architecture:One 16K Bytes Boot Sector with Programming Lockout;Two 8K Bytes Parameter Sectors;Eight Main Memory Sectors (One 32K Bytes, Seven 64K Bytes); (5)Fast Erase Cycle Time – 8 Seconds; (6)Byte-by-Byte Programming – 10 μs/Byte Typical; (7)Hardware Data Protection; (8)DATA Polling or Toggle Bit for End of Program Detection; (9)Low Power Dissipation:20 mA Active Current;25 μA CMOS Standby Current for VCC = 2.7V to 3.6V;30 μA CMOS Standby Current for VCC = 4.5V to 5.5V; (10)Minimum 100,000 Write Cycles
