Product Summary
The LD1086 is a LOW DROP voltage regulator able to provide up to 1.5A of output current.Dropout is guaranteed at a maximum of 1.2V at
the maximum output current, decreasing at lower loads. The LD1086 is pin to pin compatible with the older 3-terminal adjustable regulators, but has better performances in term of drop and output tolerance.A 2.85V output version is suitable for SCSI-2 active termination. Unlike PNP regulators, where a part of the output current is wasted as quiescent current, the LD1086 quiescent current flows into the load, so increase efficiency. Only a 10μF minimum capacitor is need for stability. The device is supplied in TO-220, D2PAK, D2PAK/A and DPAK. On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ±1% at 25℃.
Parametrics
Absolute maximum ratings:
(1)VI, DC Input voltage: 30 V;
(2)IO, Output current: Internally Limited mA;
(3)PD, Power dissipation: Internally Limited mW;
(4)TSTG, Storage temperature range: -55 to +150 ℃;
(5)TOP, Operating junction temperature range: -40 to +125℃
Features
(1)Typical dropout 1.3V at 1.5A;
(2)Three terminal adjustable or fixed output voltage 1.5V, 1.8V, 2.5V, 3.3V, 3.6V, 5V, 8V,9V, 12V.;
(3)Guaranteed output current up to 1.5A;
(4)Output tolerance ±1% at 25℃ and ±2% in full temperature range;
(5)Internal power and thermal limit;
(6)Wide operating temperature range:-40℃ to 125℃;
(7)Package available: TO-220, D2PAK, D2PAK/A,DPAK;
(8)Pinout compatibility with standard adjustable VREG
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20128435130749.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

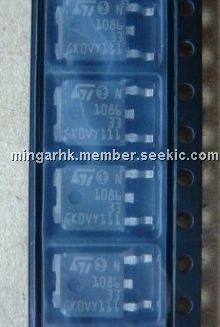

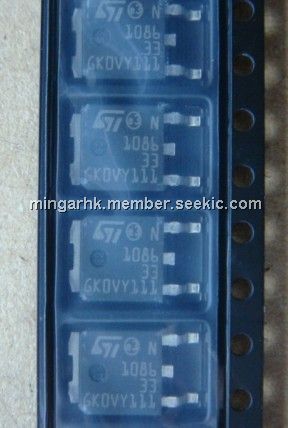

 LD1086DT33TR |
STMicroelectronics |
Low Dropout (LDO) Regulators 3.3V 1.5A Positive |
