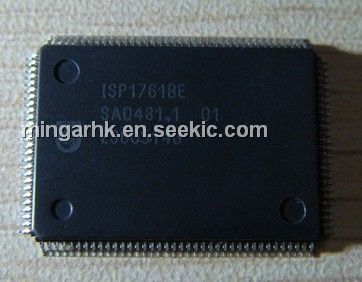

Product Summary
The ISP1761 is a single-chip Hi-Speed Universal Serial Bus (USB) On-The-Go (OTG) Controller integrated with the advanced
Philips Slave Host Controller and the Philips ISP1582 Peripheral Controller.
Parametrics
Absolute maximum ratings:
- VCC(I/O),supply voltage:-0.5 to +4.6 V
- VCC(5V0),supply voltage:-0.5 to +5.6 V
- VCC(C_IN),supply voltage:4.5 V
- Ilu,latch-up current, VI < 0 or VI > VCC:100 mA
- Vesd,electrostatic discharge voltage, ILI < 1 μA:-4000 to +4000 V
- Tstg,storage temperature:-40 to +125℃
Features
1.Compliant with Universal Serial Bus Speci?cation Rev. 2.0; supporting data transfer at high-speed (480 Mbit/s), full-speed
(12 Mbit/s) and low-speed (1.5 Mbit/s)
2.Integrated Transaction Translator (TT) for Original USB (full-speed and low-speed)peripheral support
3.Three USB ports that support three operational modes
4.Supports OTG Host Negotiation Protocol (HNP) and Session Request Protocol (SRP)
5.Multitasking support with Virtual Segmentation feature (up to four banks)
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
ISP1761BE |
NXP Semiconductors |
USB Interface IC USB HS OTG CTRLR |
Data Sheet |
Negotiable |
|
|||||
ISP1761BE,557 |
NXP Semiconductors |
USB Interface IC USB HS OTG CTRLR |
Data Sheet |
Negotiable |
|
|||||
ISP1761BE-T |
NXP Semiconductors |
USB Interface IC USB HS OTG CNTROLLER |
Data Sheet |
Negotiable |
|
|||||
ISP1761BEUM |
IC USB OTG CONTROLLER HS 128LQFP |
Data Sheet |
Negotiable |
|
||||||
ISP1761BEGE |
IC USB CTRL HI-SPEED 128LQFP |
Data Sheet |
Negotiable |
|
||||||
ISP1761BE-S |
IC USB CONTROLLER 128LQFP |
Data Sheet |
Negotiable |
|
