Product Summary

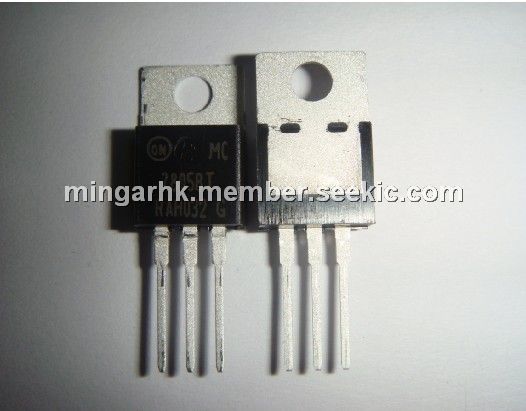

The MC7805BTG is a kind of 1.0 A Positive Voltage Regulator. It is a monolithic integrated circuits designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation. These regulators employ internal current limiting, thermal shutdown, and safe-area compensation. With adequate heatsinking it is able to deliver output currents in excess of 1.0 A.Although designed primarily as a fixed voltage regulator, the
device can be used with external components to obtain adjustable voltages and currents.
Parametrics
Absolute maximum ratings: (1)Input Voltage: (5.0-8 V): 35 V; (24 V): 40 V; (2)Power Dissipation, PD: Internally Limited W; (3)Thermal Resistance Junction-to-Ambient, RθJA: 65℃/W; (4)Thermal Resistance, Junction-to-Case, RθJC: 5.0℃/W; (5)Storage Junction Temperature Range, Tstg: -65 to +150℃; (6)Operating Junction Temperature, TJ: +150℃.
Features
Features: (1)Output Current in Excess of 1.0 A; (2)No External Components Required; (3)Internal Thermal Overload Protection; (4)Internal Short Circuit Current Limiting; (5)Output Transistor Safe-Area Compensation; (6)Output Voltage Offered in 2% and 4% Tolerance; (7)Available in Surface Mount D2PAK-3, DPAK-3 and Standard 3-Lead Transistor Packages; (8)NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes; (9)Pb-Free Packages are Available.
Diagrams

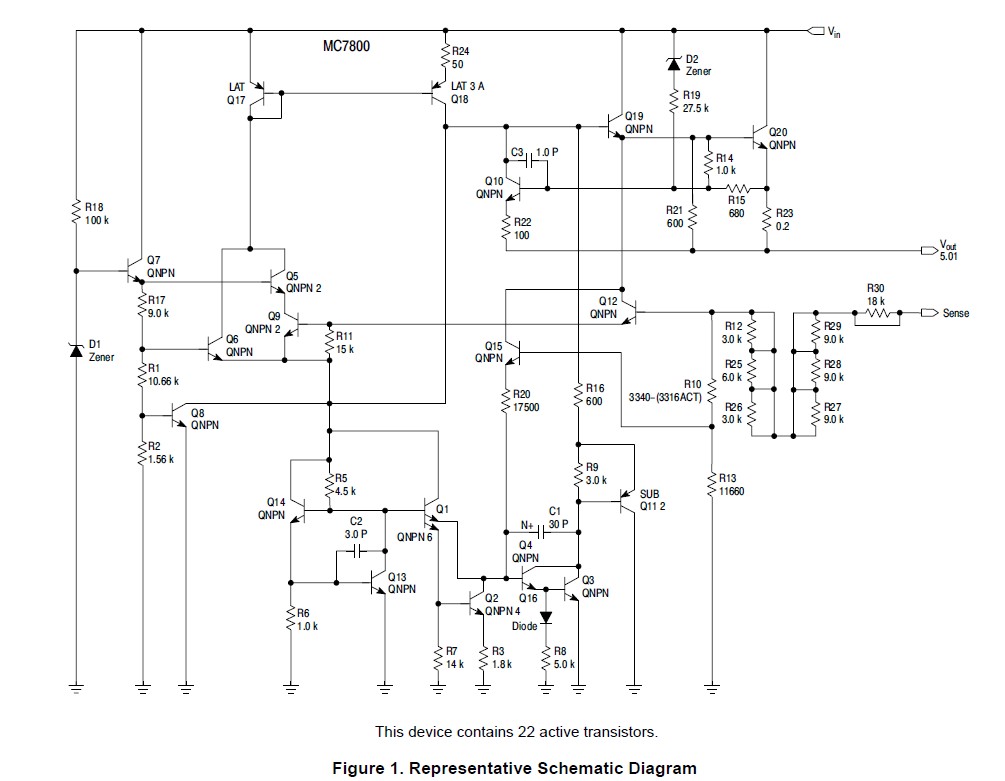

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC7805BTG |
ON Semiconductor |
Linear Regulators - Standard 5V 1A Postive |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
 |
MC7800 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
MC7800A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
MC7805ABD2TR4G |
ON Semiconductor |
Linear Regulators - Standard 5V 1A Postive |
Data Sheet |
|
|
||||||||||||||
|
MC7805ABD2TG |
ON Semiconductor |
Linear Regulators - Standard 5V 1A Postive |
Data Sheet |
|
|
||||||||||||||
|
MC7805ABD2TR4 |
ON Semiconductor |
Linear Regulators - Standard 5V 1A Postive |
Data Sheet |
Negotiable |
|
||||||||||||||
|
MC7805ABD2T |
ON Semiconductor |
Linear Regulators - Standard 5V 1A Postive |
Data Sheet |
Negotiable |
|
||||||||||||||
