Product Summary

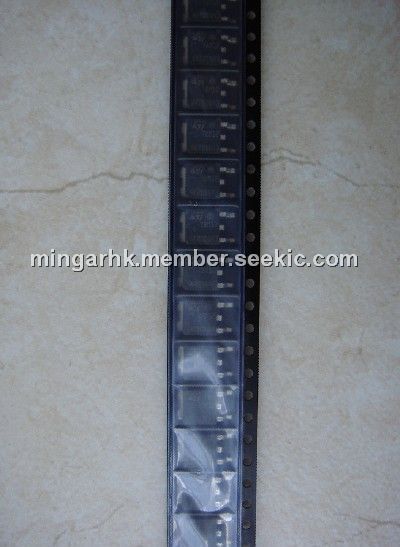

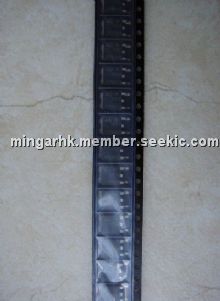

The L78M12CDT-TR is a member of L78M00 series. The L78M00 series of three-terminal positive regulators is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. They can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type uses internal current limiting, thermal shut-down and safe area protection to make it essentially indestructible. In addition, if adequate heat sinking is provided, they can deliver over 0.5A output current.

Parametrics

Absolute maximum ratings: (1)VI, DC Input Voltage: (for VO= 5 to 18V): 35 V; (for VO= 20, 24V): 40 V; (2)IO, Output Current: Internally Limited mA; (3)PD, Power Dissipation: Internally Limited mW; (4)Tstg, Storage Temperature Range: -65 to +150 ℃ ; (5)Top, Operating Junction Temperature Range: 0 to +150 ℃.

Features

Features: (1)output current to 0.5A; (2)output voltages of 5; 6; 8; 9; 12; 15; 18; 20; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition soa protection.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L78M12CDT-TR
L78M12CDT-TR
STMicroelectronics
Linear Regulators - Standard 12V 0.5A Positive
Data Sheet
0-1: $0.32
1-10: $0.26
10-100: $0.20
100-250: $0.17
