Product Summary

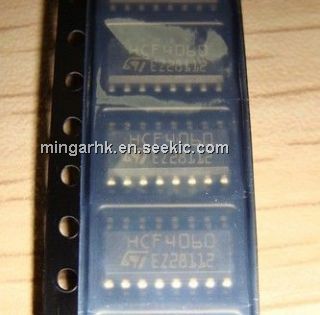

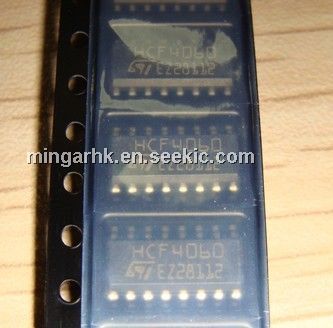

HCF4060M013TR

Parametrics

ABSOLUTE MAXIMUM RATING:

  1. Supply Voltage:-0.5 to +18V
  2. Input Voltage:-0.5 to VDD+0.5V
  3. DC Input Current (any one input):±10mA
  4. Total Power Dissipation (per package):200mW;Dissipation per Output Transistor for Top = Full Package Temperature Range:100mW
  5. Operating Temperature:-40 to+85℃
  6. Storage Temperature:-65to +150℃


Features

  1. MEDIUM-SPEED OPERATION
  2. COMMON RESET
  3. FULLY STATIC OPERATION
  4. BUFFERED INPUTS AND OUTPUTS
  5. QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE
  6. 5V, 10V AND 15V PARAMETRIC RATINGS
  7. INPUT CURRENT OF 100nA AT 18V AND 25℃FOR HCC DEVICE
  8. 1005 TESTED FOR QUIESCENT CURRENT
  9. MEETS ALL REQUIREMENTS OF JEDECTENTATIVE STANDARD N. 13A, ” STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIES CMOS DEVICES ”

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HCF4060M013TR
HCF4060M013TR
STMicroelectronics
Counter Shift Registers 14-Stage Bin Cnt/Div
Data Sheet
0-1: $0.32
1-10: $0.25
10-100: $0.17
100-250: $0.14
