Product Summary
The CD4051BC, CD4052BC, and CD4053BC analog mul-tiplexers/demultiplexers are digitally controlled analogswitches having low “ON” impedance and very low “OFF”leakage currents. Control of analog signals up to 15Vp-pcan be achieved by digital signal amplitudes of 3?15V. Forexample, if VDD = 5V, VSS = 0V and VEE = ?5V, analog sig-nals from?5V to +5V can be controlled by digital inputs of0?5V. The multiplexer circuits dissipate extremely low qui-escent power over the full VDD?VSS and VDD?VEE supplyvoltage ranges, independent of the logic state of the controlsignals. When a logical “1” is present at the inhibit input ter-minal all channels are “OFF”.
Parametrics
Absolute Maximum Ratings：
(1)DC Supply Voltage (VDD):-0.5 V DC to +18 VDC; (2)Input Voltage (VIN):-0.5 VDC to VDD +0.5 VDC; (3)Storage TemperatureRange (TS):-65℃ to +150℃; (4)Power Dissipation (PD),Dual-In-Line:700 mW;Small Outline:500mW; (5)Lead Temperature (TL)(soldering, 10 seconds):260℃
Features
(1)Wide range of digital and analog signal levels:digital 3 – 15V, analog to 15Vp-p; (2)Low “ON” resistance: 80Ω (typ.) over entire 15Vp-psignal-input range for VDD-VEE = 15V; (3)High "OFF" resistance:channel leakage of±10 pA (typ.) at VDD-VEE = 10V; (4)Logic level conversion for digital addressing signals of3 – 15V (VDD -VSS = 3 – 15V) to switch analog signalsto 15 Vp-p (VDD-VEE = 15V); (5)Matched switch characteristics:RON = 5Ω (typ.) for VDD-VEE = 15V; (6)Verylowquiescentpowerdissipationunderalldigital-control input and supply conditions:1μ W (typ.) at VDD-VSS = VDD-VEE = 10V; (7)Binary address decoding on chip
Diagrams
<P><IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271941450546.jpg"></P>
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

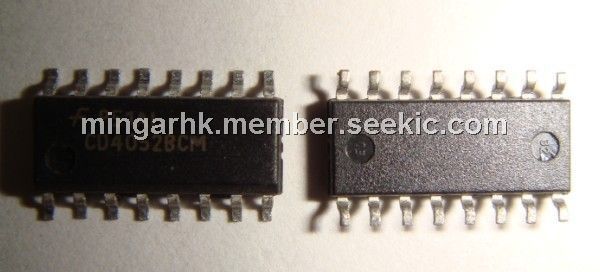

 CD4052BCM |
Fairchild Semiconductor |
Multiplexer Switch ICs Multiplex/Demultiple |
Data Sheet |
Negotiable |
|
||||
|
CD4052BCM_Q |
Fairchild Semiconductor |
Multiplexer Switch ICs Multiplex/Demultiple |
Data Sheet |
Negotiable |
|
||||
|
CD4052BCMX |
Fairchild Semiconductor |
Multiplexer Switch ICs Multiplex/Demultiple |
Data Sheet |
Negotiable |
|
||||
