Product Summary

The AD9288 is a dual 8-bit monolithic sampling analog-to-digital converter with on-chip track-and-hold circuits and isoptimized for low cost, low power, small size and ease of use.The product operates at a 100 MSPS conversion rate with out-standing dynamic performance over its full operating range.Each channel can be operated independently.

Parametrics

ABSOLUTE MAXIMUM RATINGS:(1)VD, VDD:+4 V; (2)Analog Inputs :-0.5 V to VD + 0.5 V; (3)Digital Inputs:-0.5 V to VDD + 0.5 V; (4)VREF IN:-0.5 V to VD + 0.5 V; (5)Digital Output Current:20 mA; (6)Operating Temperature:-55℃ to +125℃; (7)Storage Temperature:-65℃to +150℃; (8)Maximum Junction Temperature:+175℃; (9)Maximum Case Temperature:+150℃

Features

(1)Dual 8-Bit, 40 MSPS, 80 MSPS, and 100 MSPS ADC; (2)Low Power: 90 mW at 100 MSPS per Channel; (3)On-Chip Reference and Track/Holds; (4)475 MHz Analog Bandwidth Each Channel; (5)SNR = 47 dB @ 41 MHz; (6)1 V p-p Analog Input Range Each Channel; (7)Single +3.0 V Supply Operation (2.7 V–3.6 V); (8)Standby Mode for Single Channel Operation; (9)Twos Complement or Offset Binary Output Mode; (10)Output Data Alignment Mode

Diagrams

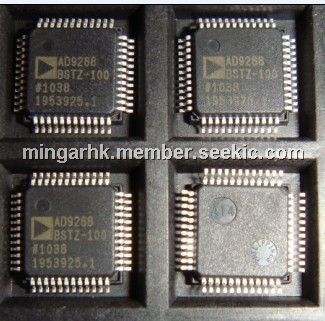

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20127133339208.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9288BSTZ-100
AD9288BSTZ-100

IC ADC 8BIT DUAL 100MSPS 48-LQFP
Data Sheet
0-1: $11.75
1-10: $10.87
10-100: $9.28
100-250: $8.52
250-500: $8.11
500-1000: $7.83
