Product Summary
MAX 3000A devices are low–cost, high–performance devices based on the Altera MAX architecture. Fabricated with
advanced CMOS technology, the EEPROM–based MAX 3000A devices operate with a 3.3-V supply voltage and provide 600
to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz. MAX 3000A devices
in the –4, –5, –6, –7, and –10 speed grades are compatible with the timing requirements of the PCI Special Interest Group
(PCI SIG) PCI Local Bus Specification, Revision 2.2.
Parametrics
Absolute Maximum Ratings:
- VCC, Supply voltage,With respect to ground: –0.5 to 4.6 V
- VI, DC input voltage, With respect to ground: –2.0 to 5.75 V
- IOUT, DC output current, per pin: –25 to 25 mA
- TSTG, Storage temperature No bias: –65℃ to 150℃
- TA, Ambient temperature Under bias: –65℃ to 135℃
- TJ,Junction temperature, PQFP and TQFP packages, under bias: 135℃
Features
1.High–performance, low–cost CMOS EEPROM–based programmable logic devices (PLDs) built on a MAX architecture
2.3.3-V in-system programmability (ISP) through the built–in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface
with advanced pin-locking capability ISP circuitry compliant with IEEE Std. 1532
3.Built–in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-19904.Enhanced ISP features:
– Enhanced ISP algorithm for faster programming
– ISP_Done bit to ensure complete programming
– Pull-up resistor on I/O pins during in–system programming
5.High–density PLDs ranging from 600 to 10,000 usable gates
6.4.5–ns pin–to–pin logic delays with counter frequencies of up to 227.3 MHz
7.MultiVolt I/O interface enabling the device core to run at 3.3 V, while I/O pins are compatible with 5.0–V, 3.3–V,
and 2.5–V logic
levels8.Pin counts ranging from 44 to 256 in a variety of thin quad flat pack (TQFP), plastic quad flat pack (PQFP), plastic J–lead
chip carrier (PLCC), and FineLine BGATM packages
9.Hot–socketing support10.Programmable interconnect array (PIA) continuous routing structure for fast, predictable performance
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

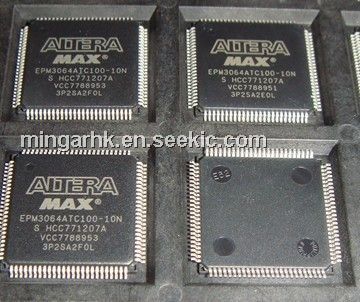

 EPM3064ATC100-10N |
|
IC MAX 3000A CPLD 64 100-TQFP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
EPM3 |
Meterman |
Test Accessories - Other COMBINATION PHASE & MOTOR ROT TESTER |
Data Sheet |
Negotiable |
|
||||||
 |
EPM3032ALC44-10 |
|
IC MAX 3000A CPLD 32 44-PLCC |
Data Sheet |
|
|
||||||
|
EPM3032ALC44-10N |
|
IC MAX 3000A CPLD 32 44-PLCC |
Data Sheet |
|
|
||||||
|
EPM3032ALC44-4 |
|
IC MAX 3000A CPLD 32 44-PLCC |
Data Sheet |
|
|
||||||
|
EPM3032ALC44-4N |
|
IC MAX 3000A CPLD 32 44-PLCC |
Data Sheet |
|
|
||||||
|
EPM3032ALC44-7 |
|
IC MAX 3000A CPLD 32 44-PLCC |
Data Sheet |
|
|
||||||
