Product Summary

The EL2160C is a current feedback operational amplifier with 3 dB bandwidth of 130 MHz at a gain of +2. Built using the Elantec proprietary monolithic complementary bipolar process,this amplifer uses current mode feedback to achieve more bandwidth at a given gain than a conventional voltage feedback operational amplifier.It is designed to drive a double terminated 75Ω coax cable to video levels. Differential gain and phase are excellent when driving both loads of 500Ω (k0.01%/k0.01°) and double terminated 75Ω cables (0.025%/0.1°).

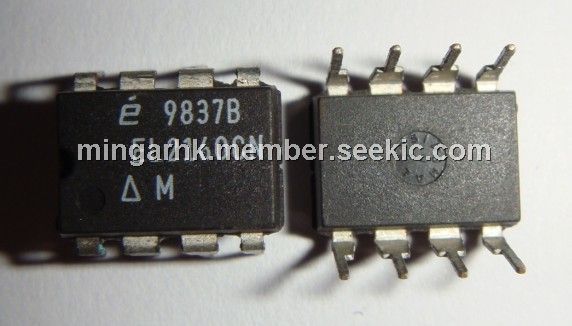

The amplifier can operate on any supply voltage from 4V (±2V) to 33V (±16.5V), yet consume only 8.5 mA at any supply voltage. Using industry standard pinouts, the EL2160C is available in 8-pin P-DIP and 8-pin SO packages. For dual and quad applications, please see the EL2260C/EL2460C datasheet.

Parametrics

Absolute Maximum Ratings (TA=25℃):
(1)Voltage between VS+ and VS- :+33V;
(2)Voltage between +IN and -IN:±6V;
(3)Current into +IN or -IN: 10 mA;
(4)Internal Power Dissipation: See Curves;
(5)Operating Ambient Temperature Range:-40-℃ to +85℃;
(6)Operating Junction Temperature,Plastic Packages :150℃;
(7)Output Current:±50 mA;
(8)Storage Temperature Range:-65℃ to +150℃

Features

(1)130 MHz 3 dB bandwidth(AV=+2);
(2)180 MHz 3 dB bandwidth(AV=+1);
(3)0.01% differential gain, RL=500Ω;
(4)0.01° differential phase,RL=500Ω;
(5)Low supply current, 8.5 mA;
(6)Wide supply range, ±2V to ±15V;
(7)80 mA output current (peak);
(8)Low cost;
(9)1500 V/μs slew rate;
(10)Input common mode range to within 1.5V of supplies;
(11)35 ns settling time to 0.1%

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201273154419288.jpg">
