Product Summary

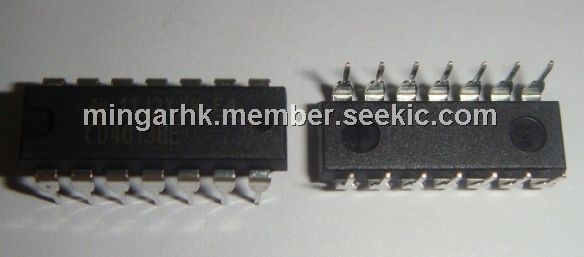

CD40138 consists of two identical,independent data-type flip-flops.Each flip-flop has inpendent data set,reset,and clock inputs and Q and Q out puts.These devices can be used for shift register applications,and,by connecting Q output to the data input,for counter and toggle applications.The logic level present at the D input is transferred to the Q output during the positive-going transition of the clock pulse.Setting or resetting is independent of the clock and is accomplished by a high level on the set or reset line,respectively.
Parametrics
Maximum Ratings,Absolute-Maximum Values
DC Supply-voltage range,(VDD):
(1)Voltages referenced to Vss Terminal:-0.5V to +20V; (2)Input voltage range,all inputs:-0.5V to VDD+0.5V; (3)DC input current,any one input:±10mA; (4)Power dissipation per package:For TA=-55℃ to +100℃:50mW;For TA=+100℃ to +125℃:Derate Linearity at 12mW/℃ 200mW; (5)Device dissipation per output transistor,for TA=Full package-Temperature Range(All package Types):100mW; (6)Operating Temperature Range:-55℃ to +125℃; (7)Storage Temperature Range:-65℃ to +150℃; (8)Lead Temperature (During soldering) at distance 1/16±1/32 inch(1.59±0.79mm)from case for 10s max:+265℃
Features
(1)Set-Reset capability; (2)Static flip-flop operation-retains state indefinitely with clock level either "high" or "low"; (3)Medium-speed operation-16MHz(typ.) clock toggle rate at 10V; (4)Standardized symmetrical output characteristics; (5)100% tested for quiescent current at 20V; (6)Maximum input current of 1μA at 18V over full package temperature range;100nA at 18V and 25℃; (7)Noise margin(over full package temperature range):1V at VDD=5V;2V at VDD=10V;2.5V at VDD=15V; (8)5-V,10-V and 15-V parametric ratings.; (9)Meets all requirements of JEDEC Tentative Standard No.13B,"Standard Specifications for Description of ‘B’ Series CMOS Devices"
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271861925902.jpg">
