Product Summary
The CPC5622 is a member of and builds upon Clare’sthird generation of LITELINK products with improvedinsertion loss performance and lower minimum currentdraw from the phone line. The CPC5622 version ofLITELINK III provides concurrent ringing detection andCID monitoring for world wide applications. Bothhalf-wave and full-wave ringing detection are providedfor maximum versatility.
Parametrics
Absolute Maximum Ratings:
(1)VDD:-0.3 to 6V; (2)Logic Inputs:-0.3 to VDD + 0.3V; (3)Continuous Tip to RingCurrent (RZDC = 5.2Ω):150mA; (4)Total Package PowerDissipation:1W; (5)Isolation Voltage:3000Vrms; (6)Operating temperature:-40 to +85℃; (7)Storage temperature:-40 to +125℃
Features
(1)Superior voice solution with low noise and excellentpart-to-part gain accuracy; (2)3 kV RMS line isolation; (3)Simultaneous ringing detection and CID monitoring for worldwide applications; (4)Provides both full-wave ringing detect and half-waveringing detect for maximum versatility; (5)Transmit power of up to +10 dBm into 600Ω; (6)Data access arrangement (DAA) solution for modem speeds up to V.92; (7)3.3V or 5 V power supply operation; (8)Easy interface with modem ICs and voice CODECs; (9)Worldwide dial-up telephone network compatibility; (10)CPC5622 can be used in circuits that comply with the requirements of TIA/EIA/IS-968 (FCC part 68),UL60950 (UL1950), EN/IEC 60950-1 Supplementary Isolation Compliant, IEC60950,EN55022B, CISPR22B, EN55024, and TBR-21; (11)Line-side circuit powered from telephone line; (12)Compared to other silicon DAA solutions, LITELINK:Uses fewer passive components;Takes up less printed-circuit board space;Uses less telephone line power- Is a single;IC solution
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201272015443638.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

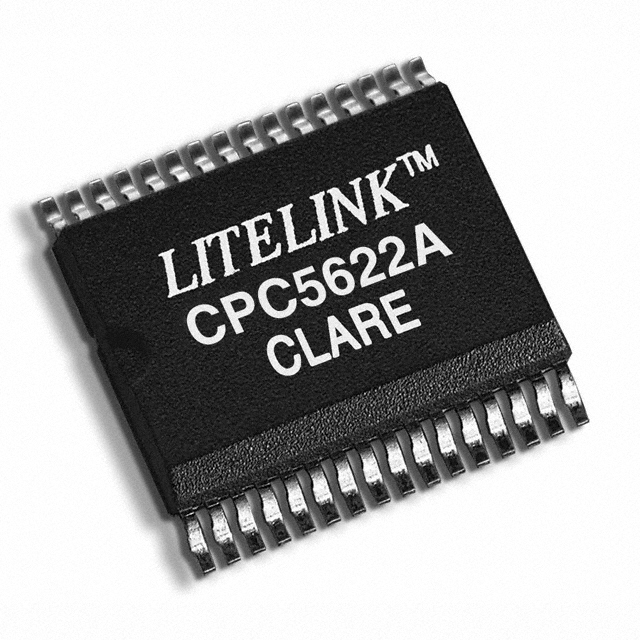

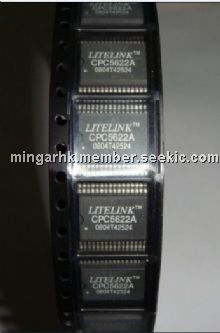

 CPC5622A |
Clare |
Solid State Relays LITELINK III, Full-wave Ring Detect |
Data Sheet |
Negotiable |
|
||||
|
CPC5622ATR |
Clare |
Solid State Relays LITELINK III, Full-wave Ring Detect, T/R |
Data Sheet |
Negotiable |
|
||||
