Product Summary
Chopper Regulator, DC/DC Converter and Motor Drive Applications
Parametrics
Absolute Maximum Ratings (Ta = 25℃):
(1)Drain-source voltage:600V;
(2)Drain-gate voltage (RGS=20kΩ) :600V;
(3)Gate-source voltage:±30V;
(4)Drain current:DC=2A;Pulse (t=1ms):5A;Pulse (t=100μs) :8A;
(5)Drain power dissipation (Tc = 25℃) :20W;
(6)Single-pulse avalanche energy:93mJ;
(7)Avalanche current :2A;
(8)Repetitive avalanche energy :2mJ;
(9)Channel temperature :150℃;
(10)Storage temperature range:-55~+150℃
Features
(1)Low drain-source ON-resistance : RDS (ON)=4.2Ω(typ.);
(2)High forward transfer admittance : |Yfs| = 1.7 S (typ.) ;
(3)Low leakage current : IDSS = 100 μA (max) (VDS = 600 V) ;
(4)Enhancement mode : Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA)
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

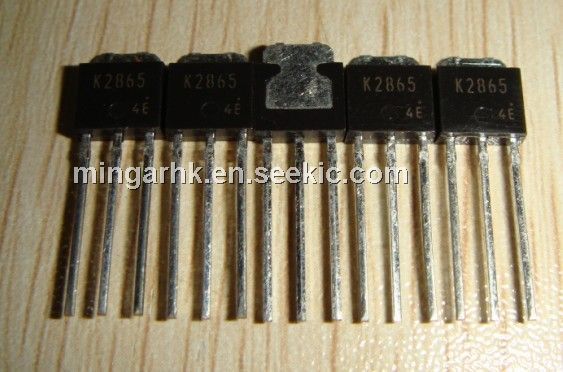

 2SK2865 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
2SK2865(TE16L1,NQ) |
|
MOSFET N-CH 600V 2A PW-MOLD |
Data Sheet |
|
|
||||||
