Product Summary
The MAX? II family of instant-on, non-volatile CPLDs is based on a 0.18-μm, 6-layermetal-flash process, with densities from 240 to 2,210 logic elements (LEs) (128 to 2,210 equivalent macrocells) and non-volatile storage of 8 Kbits. MAX II devices offer high I/O counts, fast performance, and reliable fitting versus other CPLD architectures.Featuring MultiVolt core, a user flash memory (UFM) block, and enhanced in-system programmability (ISP), MAX II devices are designed to reduce cost and power while providing programmable solutions for applications such as bus bridging, I/O expansion, power-on reset (POR) and sequencing control, and device configuration control.
Parametrics
Absolute Maximum Ratings:(1)Internal supply voltage：-0.5V to 4.6 V(With respect to ground); (2)I/O supply voltage:-0.5V to 4.6 V; (3)DC input voltage:-0.5V to 4.6 V; (4)DC output current, per pin :–25mA to 25mA; (5)Storage temperature:-65℃ to 150℃; (6)Ambient temperature:-65℃ to 135℃; (7)Junction temperature:135℃
Features

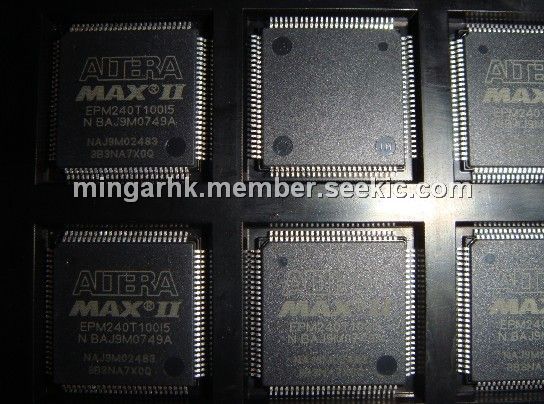

Specifications: (1)Manufacturer Part Number: EPM240T100I5; (2)Description: IC MAX II CPLD 240 LE 100-TQFP; (3)Quantity Available: 334; (4)Vendor: Altera; (5)Category: Integrated Circuits (ICs); (6)Programmable Type: In System Programmable; (7)Number of Macrocells: 192; (8)Number of I /O: 80; (9)Lead Free Status: Contains Lead; (10)RoHS Status: RoHS Non-Compliant.
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20127451135188.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPM240T100I5 |
|
IC MAX II CPLD 240 LE 100-TQFP |
Data Sheet |
|
|
||||||
|
EPM240T100I5N |
|
IC MAX II CPLD 240 LE 100-TQFP |
Data Sheet |
|
|
||||||
