Product Summary

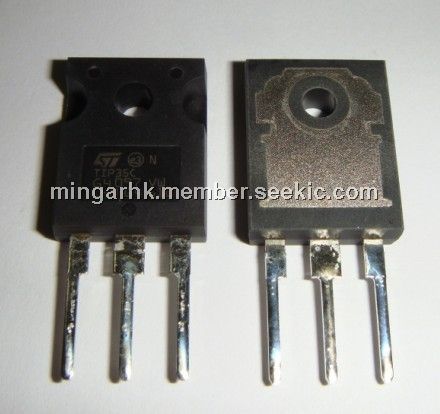

The TIP35C is a silicon Epitaxial-Base NPNtransistor mounted in TO-218 plastic package. Itis intented for use in power amplifier andswitching applications.The complementary PNP type is TIP36C.Also TIP36B is a PNP type.
Parametrics
ABSOLUTE MAXIMUM RATINGS:
(1)Collector-Base Voltage (IE=0):100V; (2)Collector-Emitter Voltage (IB=0):100V; (3)Emitter-Base Voltage (IC=0):5V; (4)Collector Current:25A; (5)Collector Peak Current:50A; (6)Base Current:5A; (7)Total Dissipation at Tcase≤ 25℃:125W; (8)Storage Temperature:-65 to 150℃; (9)Max. Operating Junction Temperature:150℃
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201272442510677.jpg">
