Product Summary

SN2385BDCE is a surface mount general purpose plasitc rectifier.

Parametrics

SN2385BDCE absolute maximum ratings: (1)Maximum repetitive peak reverse voltage: 600 V; (2)Maximum RMS voltage: 420 V; (3)Maximum DC blocking voltage: 600 V; (4)Maximum average forward rectified current at TL=75℃: 3.0 Am; (5)Peak forward surge current 8.3mS single half sine-wave superimposed on rated load (MIL-STD-750D 4066 method): 100 Am; (6)Maximum instantaneous forward voltage at 3.0A: 1.20 V; (7)Operating and storage temperature range: -55℃ to +150℃.

Features

SN2385BDCE features: (1)For surface mounted applications; (2)Low profile package; (3)Built-in strain relief; (4)Easy pick and place; (5)Plastic package has Underwriters Laboratory; (6)Flammability Classification 94V-0; (7)High temperature soldering: 260℃/10 seconds at terminals.

Diagrams

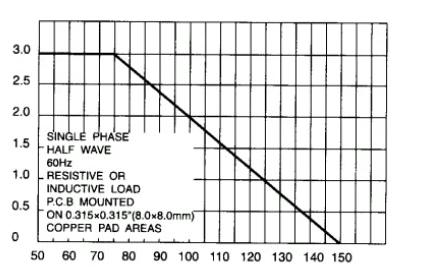

SN2385BDCE corrugated diagram

SN23
SN23
