Product Summary

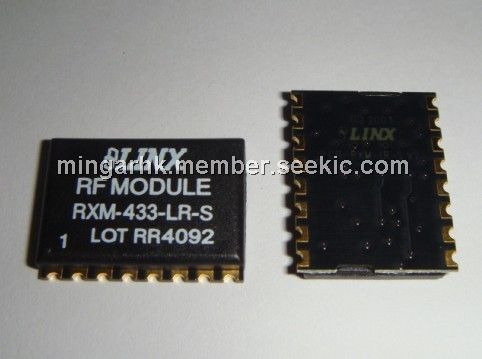

The LR Series transmitter is ideal for the costeffective wireless transfer of serial data, control, or command information in the favorable 260-470MHz band. When paired with a compatible Linx receiver, a reliable wireless link is formed, capable of transferring data at rates of up to 10,000bps at distances of up to 3,000 feet. Applications operating over shorter distances or at lower data rates will also benefit from increased link reliability and superior noise immunity. The transmitter’s synthesized architecture delivers outstanding stability and frequency accuracy and minimizes the affects of antenna pulling. Housed in a tiny reflow-compatible SMD package, the transmitter requires no external components (except an antenna), which greatly simplifies integration and lowers assembly costs.
Parametrics
ABSOLUTE MAXIMUM RATINGS:
(1)Supply Voltage VCC: -0.3 to +3.6 VDC;
(2)Any Input or Output Pin: -0.3 to VCC + 0.3 VDC;
(3)Operating Temperature: -40℃ to +85℃;
(4)Storage Temperature: -40℃ to +90℃;
(5)Soldering Temperature: +225℃ for 10 seconds
NOTE: Exceeding any of the limits of this section may lead to permanent damage to the device. Furthermore, extended operation at these maximum ratings may reduce the life of this device.
Features
(1)Long range;
(2)Low cost;
(3)PLL-synthesized architecture;
(4)Direct serial interface;
(5)Data rates to 10,000bps;
(6)No external RF components needed;
(7)Low power consumption;
(8)Low voltage (2.1 to 3.6VDC);
(9)Compact surface mount package;
(10)Wide temperature range;
(11)Power-down function;
(12)No production tuning
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20127311162556.jpg">
 |
