Product Summary

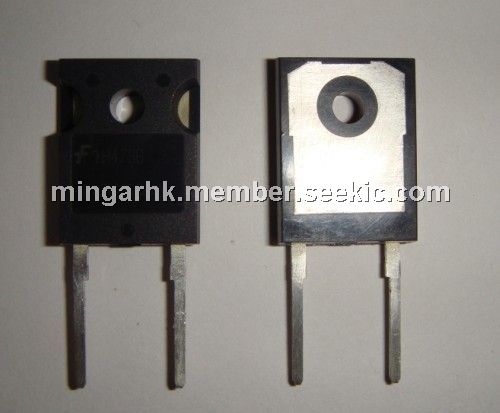

The RURG5060 is an ultrafast diode with soft recovery characteristics (trr< 65ns). It has low forward voltage drop and is of silicon nitride passivated ion-implanted epitaxial planar construction.It is intended for use as a freewheeling/clamping diode and rectifier in a variety of switching power supplies and other power switching applications. Its low stored charge and ultrafast recovery with soft recovery characteristic
minimizes ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistors.
Parametrics
Absolute Maximum Ratings
TC=25℃, Unless Otherwise Specified:
(1)Peak Repetitive Reverse Voltage:600V;
(2)Working Peak Reverse Voltage:600V;
(3)DC Blocking Voltage:600V;
(4)Average Rectified Forward Current:50A;
(5)Repetitive Peak Surge Current(Square Wave, 20kHz):100A;
(6)Nonrepetitive Peak Surge Current(Halfwave, 1 Phase, 60Hz):500A;
(7)Maximum Power Dissipation:150W;
(8)Avalanche Energy (See Figures 7 and 8):40mJ;
(9)Operating and Storage Temperature:-65℃ to 175℃
Features
(1)Ultrafast with Soft Recovery:<65ns;
(2)Operating Temperature:175℃;
(3)Reverse Voltage: 600V;
(4)Avalanche Energy Rated;
(5)Planar Construction
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201273121214996.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RURG5060 |
Fairchild Semiconductor |
Rectifiers TO-247 Ultra Fast |
Data Sheet |
|
|
||||||||||||
 |
RURG5060_Q |
Fairchild Semiconductor |
Rectifiers TO-247 Ultra Fast |
Data Sheet |
Negotiable |
|
||||||||||||
