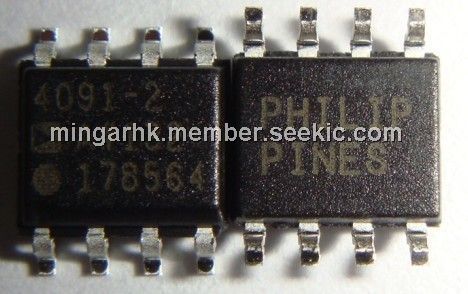

Product Summary

The ADA4091-2 dual and ADA4091-4 quad are micropower,single-supply, 1.2 MHz bandwidth amplifiers featuring rail-to-rail inputs and outputs. They are guaranteed to operate from a+2.7 V to +30 V single supply as well as from ±1.35 V to ±15 Vdual supplies.

Parametrics

ABSOLUTE MAXIMUM RATINGS:(1)Supply Voltage:36 V; (2)Input VoltageRefer to the Input,Overvoltage Protectionsection; (3)Differential Input Voltage1:±VSY; (4)Input Current:±5 mA; (5)Output Short-Circuit Duration to GND:Indefinite; (6)Storage Temperature Range:-65℃ to +150℃; (7)Operating Temperature Range:-40℃ to +125℃; (8)Junction Temperature Range:-65℃ to +150℃; (9)Lead Temperature (Soldering, 60 sec):300℃

Features

(1)Single-supply operation: 2.7 V to 36 V; (2)Wide input voltage range; (3)Rail-to-rail output swing; (4)Low supply current: 200 μA/amplifier; (5)Wide bandwidth: 1.2 MHz; (6)Slew rate: 0.46 V/μs; (7)Low offset voltage: 250 μV maximum; (8)No phase reversal; (9)Overvoltage protection (OVP):25 V above/below supply rails at ±5 V;12 V above/below supply rails at ±15 V

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20127133179647.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADA4091-2ARZ
ADA4091-2ARZ


IC OPAMP GP R-R 1.27MHZ 8SOIC

Data Sheet

0-1: $3.43
1-10: $3.09
10-100: $2.54
100-250: $2.33
250-500: $2.13
500-1000: $1.85
1000-2500: $1.83
ADA4091-2ARZ-R7
ADA4091-2ARZ-R7


IC OPAMP GP R-R 1.27MHZ 8SOIC

Data Sheet

0-1000: $1.85
ADA4091-2ARZ-RL
ADA4091-2ARZ-RL


IC OPAMP GP R-R 1.27MHZ 8SOIC

Data Sheet

0-2500: $1.83
