Product Summary
The LM2469 is an integrated high voltage CRT driver circuit designed for use in color monitor applications. The IC contains three high input impedance wide band amplifiers,which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to -20 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power dissipation.The IC is packaged in an industry standard 9 lead TO-220 molded plastic package.
Parametrics
Absolute Maximum Ratings:
(1)Supply Voltage, VCC: +90V;
(2)Bias Voltage, VBB: +16V;
(3)Input Voltage, VIN: 0V to 4.5V;
(4)Storage Temperature Range, TSTG: -65℃ to +150℃;
(5)Lead Temperature (Soldering,<10sec.) :300℃;
(6)ESD Tolerance, Human Body Model :2kV
Features
(1)Higher gain to match LM126X CMOS preamplifiers;
(2)0V to 3.75V input range;
(3)Stable with 0-20pF capacitive loads and inductive peaking networks;
(4)Maintains standard LM243X Family Pinout which is designed for easy PCB layout;

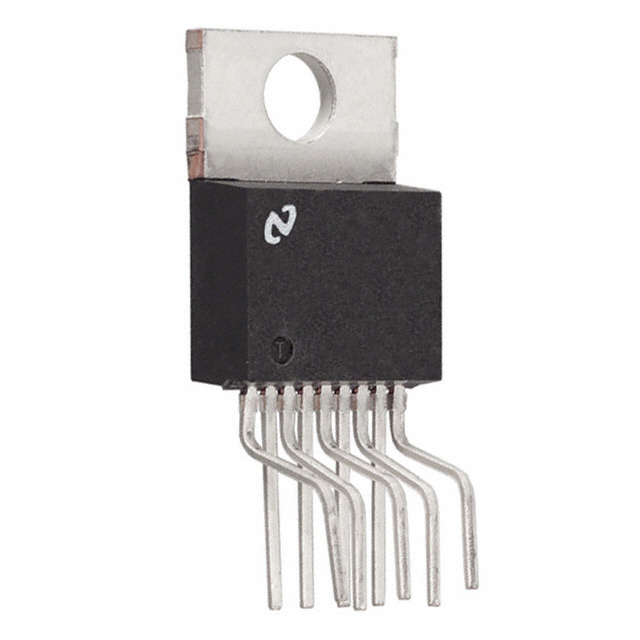

(5)Convenient TO-220 staggered 9 lead package style
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20128415611351.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2469TA/NOPB |
|
IC MONOLITHIC TRIPLE TO-220-9 |
Data Sheet |
Negotiable |
|
||||
