Product Summary

The ADM222, ADM232A, ADM242 are a family of high speedRS-232 line drivers/receivers offering transmission rates up to200 kB/s. Operating from a single +5 V power supply, a highlyefficient on-chip charge pump using small (0.1μF) externalcapacitors allows RS-232 bipolar levels to be developed. TwoRS-232 drivers and two RS-232 receivers are provided on eachdevice.

Parametrics

ABSOLUTE MAXIMUM RATINGS:(TA = +25℃ unless otherwise noted):(1)VCC:+6 V; (2)V+:(VCC -0.3 V) to +13 V; (3)V-:+0.3 V to -13 V; (4)Input Voltages:TIN:-0.3 V to (VCC + 0.3 V);RIN:±30 V; (5)Output Voltages:TOUT:(V+, +0.3 V) to (V-, -0.3 V);ROUT.:-0.3 V to (VCC + 0.3 V); (6)Short Circuit Duration:TOUT:Continuous; (7)Power Dissipation N-16:400 mW(Derate 7.5 mW/℃ above +70℃);θJA, Thermal Impedance:80℃/W; (8)Power Dissipation R-16N:400 mW(Derate 7 mW/℃ above +70℃);θJA, Thermal Impedance :80℃/W; (9)Power Dissipation R-16W:400 mW(Derate 7 mW/℃ above +70℃);θJA, Thermal Impedance:80℃/W; (10)Power Dissipation N-18:400 mW(Derate 7 mW/℃above +70℃);θJA, Thermal Impedance:80°C/W; (11)Power Dissipation R-18W:400 mW(Derate 7 mW/℃above +70℃);θJA, Thermal Impedance :80℃/W; (12)Operating Temperature Range:Industrial (A Version):-40℃to +85℃; (13)Storage Temperature Range:-65℃ to +150℃; (14)Lead Temperature (Soldering, 10 sec):+300℃; (15)Vapor Phase(60 sec):+215℃;Infrared (15 sec):+220℃

Features

(1)200 kB/s Transmission Rate; (2)Small (0.1μF) Charge Pump Capacitors; (3)Single 5 V Power Supply; (4)Meets All EIA-232-E and V.28 Specifications; (5)Two Drivers and Two Receivers; (6)On-Board DC-DC Converters; (7)±9 V Output Swing with +5 V Supply; (8)±30 V Receiver Input Levels; (9)Pin Compatible with MAX222/MAX232A/MAX242

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271334828195.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

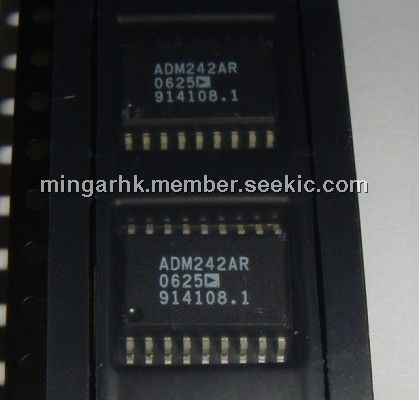

ADM242AR
ADM242AR

IC TX/RX RS-232 W/EN/SD 18SOIC
Data Sheet
0-123: $1.76
ADM242AR-REEL
ADM242AR-REEL

IC TX/RX RS-232 W/EN/SD 18SOIC
Data Sheet
0-1000: $1.20
ADM242ARZ
ADM242ARZ

IC TX/RX RS-232 W/EN/SD 18SOIC
Data Sheet
0-1: $2.07
1-10: $1.85
10-100: $1.52
100-250: $1.37
250-500: $1.23
500-1000: $1.04
1000-2500: $0.99
ADM242ARZ-REEL
ADM242ARZ-REEL

IC TXRX RS-232 2:2 5V LP 18SOIC
Data Sheet
0-1000: $1.04
