Product Summary
Mechanical Data:
(1)Case: Metal Case with Electrically Isolated Epoxy;
(2)Terminals: Plated Leads Solderable per KBPC KBPC-W MIL-STD-202, Method 208;
(3)Polarity: Symbols Marked on Case;
(4)Mounting: Through Hole for #10 Screw;
(5)Weight: KBPC 31.6 grams (approx.);KBPC-W 28.5 grams (approx.);
(6)Marking: Type Number
Parametrics
Maximum Ratings:
TA=25℃ unless otherwise specified
(1)Typical Junction Capacitance (per element)(Note 1),Cj: 300 pF;
(2)Typical Thermal Resistance Junction to Case (per element) (Note 2): 1.5 K/W;
(3)RMS Isolation Voltage from Case to Lead, VISO: 2500 V;
(4)Operating and Storage Temperature Range, Tj, TSTG :-65 to +150℃
Features
(1)Diffused Junction;
(2)Low Reverse Leakage Current;
(3)Low Power Loss, High Efficiency;
(4)Electrically Isolated Metal Case for Maximum Heat Dissipation;
(5)Case to Terminal Isolation Voltage 2500V;
(6)UL Recognized File # E157705
Diagrams

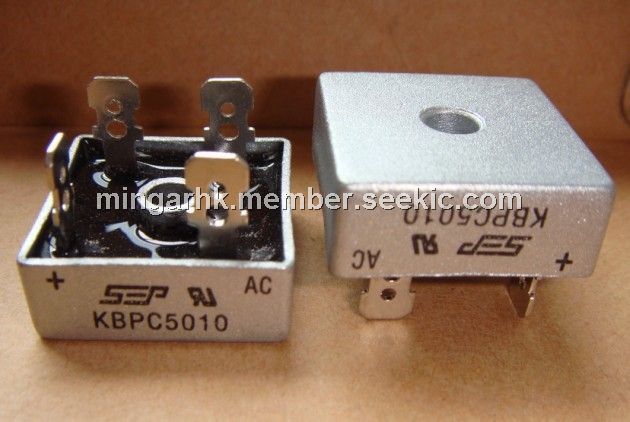

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20128623346966.jpg">
