Product Summary

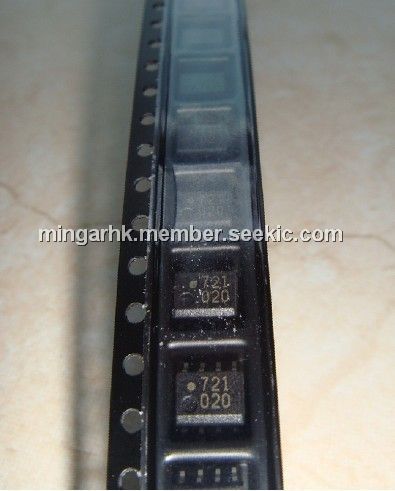

Available in 8-pin SOP package style, the HCPL-0721 optocouplers utilize the latest CMOS IC technology to achieve outstanding performance with very low power consumption. The HCPL-0721 require only two bypass capacitors for complete CMOS compatability. Basic building blocks of the HCPL-0721 is a CMOS LED driver IC, a high speed LED and a CMOS detector IC. A CMOS logic input signal controls the LED driver IC which supplies current to the LED. The detector IC incorporates an integrated photodiode, a high-speed transimpedance amplifier, and a voltage comparator with an output driver.

Parametrics

Absolute maximum ratings:(1)Storage Temperature, TS: –55 to 125℃; (2)Ambient Operating Temperature, TA: –40 to +85℃; (3)Supply Voltages, VDD1, VDD2: 0 to 6.0Volts; (4)Input Voltage, VI: –0.5 to VDD1+0.5Volts; (5)Output Voltage, VO: –0.5 to VDD2 + 0.5Volts; (6)Average Output Current, IO: 10mA; (7)Lead Solder Temperature: 260℃ for 10 sec, 1.6 mm below seating plane; (8)Solder Reflow Temperature Profile: See Solder Reflow Temperature Profile Section.

Features

Features:(1)+5 V CMOS compatibility; (2)20 ns maximum prop. delay skew; (3)High speed: 25 MBd; (4)40 ns max. prop. delay; (5)10 kV/μs minimum common mode rejection; (6)–40 to 85°C temperature range; (7)Safety and regulatory approvals.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCPL-0721
HCPL-0721

Avago Technologies

High Speed Optocouplers 25MBd 1Ch 150mA

Data Sheet

0-150: $2.76
150-250: $2.48
250-500: $2.35
500-1000: $2.21
HCPL-0721#060
HCPL-0721#060

Avago Technologies

High Speed Optocouplers 25MBd 1Ch 150mA

Data Sheet

0-150: $2.78
150-250: $2.51
250-500: $2.36
500-1000: $2.23
HCPL-0721-000E
HCPL-0721-000E

Avago Technologies

High Speed Optocouplers 25MBd 1Ch 150mA

Data Sheet

0-1: $3.80
1-25: $3.11
25-100: $2.76
100-250: $2.48
HCPL-0721-060E
HCPL-0721-060E

Avago Technologies

High Speed Optocouplers 25MBd 1Ch 150mA

Data Sheet

0-150: $2.78
150-250: $2.51
250-500: $2.36
500-1000: $2.23
HCPL-0721#560
HCPL-0721#560

Avago Technologies

High Speed Optocouplers 25MBd 1Ch 150mA

Data Sheet

0-885: $2.39
885-1500: $2.24
1500-3000: $2.11
HCPL-0721#500
HCPL-0721#500

Avago Technologies

High Speed Optocouplers 25MBd 1Ch 150mA

Data Sheet

0-885: $2.36
885-1500: $2.23
1500-3000: $2.09
HCPL-0721-560E
HCPL-0721-560E

Avago Technologies

High Speed Optocouplers 25MBd 1Ch 150mA

Data Sheet

0-885: $2.39
885-1500: $2.24
1500-3000: $2.11
HCPL-0721-500E
HCPL-0721-500E

Avago Technologies

High Speed Optocouplers 25MBd 1Ch 150mA

Data Sheet

0-885: $2.36
885-1500: $2.23
1500-3000: $2.09
