Product Summary

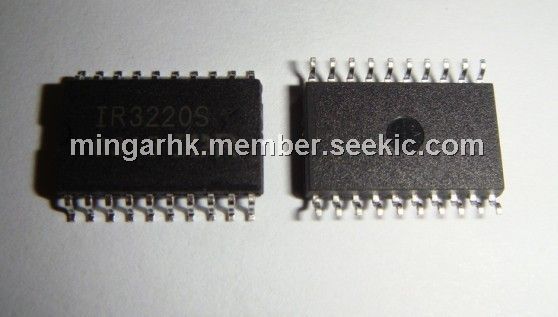

The IR3220S is a fully protected dual high side switch I.C that integrates an H–bridge motor controller with two very efficient high side MOSFETs in a single 20-pin package. The IR3220S combines with the two low side IRF7484Q MOSFETs as few as 10 external passive components to provide a complete, fully operational and fully protected H-bridge control actuator with forward,reverse, braking and non-braking modes without the need of a micro-controller.

Parametrics

Absolute Maximum Ratings:
(1)Vm1 (2), Maximum M1 (M2) voltage (active clamp): Vcc-37~Vcc+0.3V;
(2)Vin1 (2), Maximum IN 1 (IN 2) voltage: -0.3~ 5.5V;
(3)Vcc/gnd, Maximum Vcc pin to GND pin voltage: -0.3~ 45V;
(4)I in1 (2), Maximum IN1 (IN 2) current :-1 ~10 mA;
(5)Vg1 (2), Maximum Gate 1 ( Gate 2 ) voltage: -0.3~7.5V;
(6)Vss, Maximum SS voltage: -0.3~5.5V;
(7)Vrc ,Maximum Vrc voltage: -0.3~5.5V;
(8)Irc,Maximum output current of the Vrc pin: 1 mA;
(9)Vdg, Maximum diagnostic output voltage: -0.3~5.5 V;
(10)Idg, Maximum diagnostic output curren:-1~10 mA;
(11)Isd cont. ,Diode max. permanent current (Rth=80℃/W) (note1) :2.0A;(Rth=60℃/W) (note1):3.0A;
(12)Isd pulsed, Diode max. pulsed current (note1) :15A;
(13)ESD 1, Electrostatic discharge ( human body model C=100pF, R=1500Ω): 4kV;
(14)ESD 2, Electrostatic discharge ( machine model C=200pF, R=0Ω, L=10μH): 0.5kV;
(15)PD, Maximum power dissipation ( Rth = 80℃/W ):1.5 W;
(16)TJ max. ,Max. storage & operating junction temperature: -40~ +150℃;
(17)TL, Lead temperature ( soldering 10 seconds ):300℃;
(18)Vcc/gnd max., Maximum Vcc to GND voltage (0.4 s - single pulse) : 60 V;
(19)Ig1 (note2), max., Maximum transient gate current (Ton<5μS):100mA;
(20)Ig1 (note2) avg., Maximum average gate current:10mA
NOTE:1. Limited by junction temperature.

Features

(1)Programmable PWM In-rush Current Limitation (e.g 18A);
(2)6 A Continuous Current Capability without Heat Sink (2 x 13 mΩ);
(3)Over-Temperature (165℃) and Over-Current (30A) Protections;
(4)20 kHz PWM Oscillator Embedded;
(5)Low & High Frequency Switching Operation (self adaptive dead-time);
(6)Easy Speed / Torque Control(analog duty cycle input);
(7)Braking / Non-Braking Modes;
(8)Sleep Mode (braking) for Automotive Actuator

Diagrams
