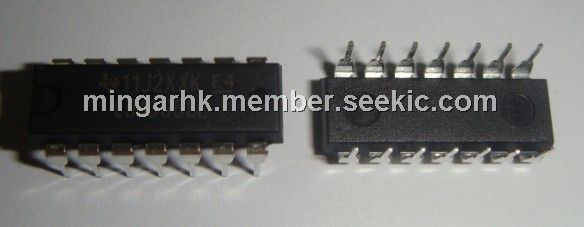

CD4066BE

Product Summary

The CD4066B is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals.It is pin-for-pin compatible with the CD4016B, but exhibits a much lower on-state resistance. In addition, theon-state resistance is relatively constant over the full signal-input range.

Parametrics

Absolute maximum ratings over operating free-air temperature (unless otherwise noted):
(1)DC supply-voltage range, VDD (voltages referenced to VSS terminal):-0.5 V to 20 V; (2)Input voltage range, Vis (all inputs):-0.5 V to VDD + 0.5 V; (3)DC input current, IIN (any one input):±10 mA; (4)Package thermal impedance,θJA (see Note 1): E package80℃/W;M package86℃/W;NS package76℃/W;PW package113℃/W; (5)Lead temperature (during soldering):At distance 1/16± 1/32 inch (1,59 ± 0,79 mm) from case for 10s max:265℃; (6)Storage temperature range, Tstg:-65℃ to 150℃

Features

(1)15V Digital or ±7.5-V Peak-to-Peak Switching; (2)125Ω Typical On-State Resistance for 15-V Operation; (3)Switch On-State Resistance Matched toWithin 5ΩOver 15-V Signal-Input Range; (4)On-State Resistance Flat Over Full Peak-to-Peak Signal Range; (5)High On/Off Output-Voltage Ratio: 80 dB,Typical at fis = 10 kHz, RL = 1 kΩ; (6)High Degree of Linearity: <0.5% Distortion :Typical at fis = 1 kHz, Vis = 5 V p-p,VDD – VSS ≥ 10 V, RL = 10 kΩ; (7)Extremely Low Off-State Switch Leakage,Resulting in Very Low Offset Current and High Effective Off-State Resistance: 10 pA,Typical at VDD–VSS = 10 V, TA = 25℃; (8)Extremely High Control Input Impedance(Control Circuit Isolated From SignalCircuit): 1012Ω Typical; (9)Low Crosstalk Between Switches: –50 dBTypical at fis = 8 MHz, RL = 1 kΩ; (10)Matched Control-Input to Signal-OutputCapacitance: Reduces Output Signal Transients; (11)Frequency Response, Switch On = 40 MHzTypical; (12)100% Tested for Quiescent Current at 20 V; (13)5-V, 10-V, and 15-V Parametric Ratings; (14)Meets All Requirements of JEDEC Tentative,Standard No. 13-B, Standard Specifications for Description of “B” Series CMOS Devices

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271943538672.jpg">
