Product Summary

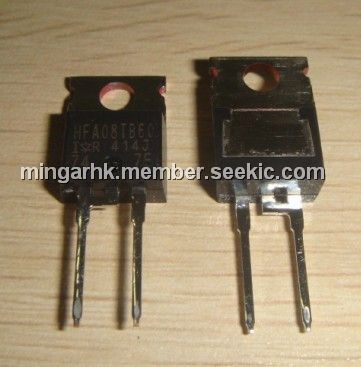

International Rectifier's HFA08TB60 is a state of the art ultra fast recoverydiode. Employing the latest in epitaxial construction and advanced processingtechniques it features a superb combination of characteristics which result inperformance which is unsurpassed by any rectifier previously available. Withbasic ratings of 600 volts and 8 amps continuous current, the HFA08TB60 isespecially well suited for use as the companion diode for IGBTs and MOSFETs.
Parametrics
Absolute Maximum Ratings:(1)Cathode-to-Anode Voltage:600V; (2)Continuous Forward Current:8.0A; (3)Single Pulse Forward Current:60A; (4)Maximum Repetitive Forward Current:24A; (5)Maximum Power Dissipation:36W; (6)Maximum Power Dissipation:14W; (7)Operating Junction and TSTGStorage Temperature Range:-55℃ to +155℃;
Features
(1)Ultrafast Recovery; (2)Ultrasoft Recovery; (3)Very Low IRRM; (4)Very Low Qrr; (5)Specified at Operating Conditions; (6)Lead-Free
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/2012725428229.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HFA08TB60 |
Vishay Semiconductors |
Rectifiers 600 Volt 8.0 Amp |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
 |
HFA08TB60-1 |
Vishay Semiconductors |
Rectifiers 600 Volt 8.0 Amp |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
|
HFA08TB60S |
Vishay Semiconductors |
Rectifiers 600 Volt 8.0 Amp |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
|
HFA08TB60STRL |
Vishay Semiconductors |
Rectifiers 600 Volt 8.0 Amp |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
 |
HFA08TB60PBF |
|
DIODE HEXFRED 600V 8A TO220AC |
Data Sheet |
|
|
||||||||||||||||||||||
|
HFA08TB60SPbF |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
|
HFA08TB60STRR |
Vishay Semiconductors |
Rectifiers 600 Volt 8.0 Amp |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
