Product Summary

APPLICATION:
SMPS, DC-DC Converter, battery charger, power
supply of printer, copier, HDD, FDD, TV, VCR, personal computer etc.

Parametrics

MAXIMUM RATINGS (Tc = 25℃):

  • VDSS,Drain-source voltage,VGS = 0V:500V
  • VGSS,Gate-source voltage,VDS = 0V:±30V
  • ID,Drain current:16A
  • IDM,Drain current (Pulsed):48A
  • PD,Maximum power dissipation:150W
  • Tch,Channel temperature:-55~+150℃
  • Tstg,Storage temperature:-55~+150℃
  • Weight,Typical value:1.2g

Features

  • VDSS:500V
  • rDS (ON) (MAX):0.56Ω
  • ID:16A

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

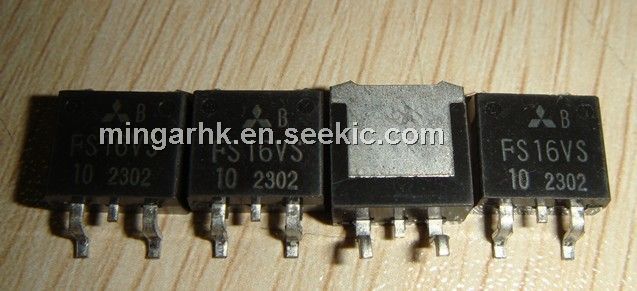

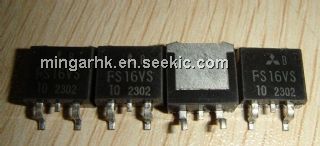

FS16VS-10
FS16VS-10
Other

Data Sheet
Negotiable
