Product Summary

The F9222L is a TCD/LED tv part.

Parametrics

F9222L absolute maximum ratings: (1)Main-MOSFET VDS: 500V; (2)Main-MOSFET RDS(ON): 0.6Ω; (3)Sub-MOSFET VDS:500V; (4)RDS(ON): 0.6Ω; (5)Control IC VCC(ON): 16.5V; (6)Control IC Tj(OH): 125℃ to 150℃.

Diagrams

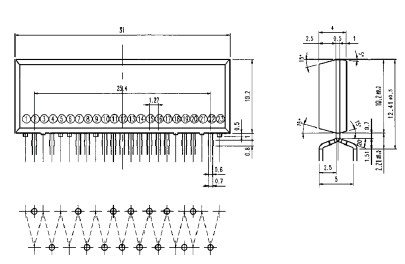

F9222L package dimensions
