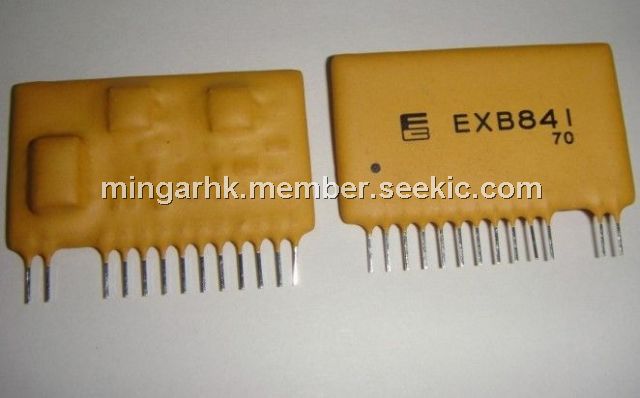

Product Summary

The insulated gate bipolar transistor(IGBT) is increasingly being used in small,low-noise,high-performance power suppliers,inverters,uninter-ruptabke power suppliers(UPS),and motor speed controls.Fuji's Hybrid IC driver for IGBTs was developed to take full advantage of IGBT.

Parametrics

ABSOLUTE MAXIMUM RATINGS:
(1)Supply voltage:25V
(2)Photocoupler input current:25mA
(3)Forward bias output current,Pw=2μs,duty at 0.05 or less:1.5~4.0A
(4)Reverse bias output current,Pw=2μs,duty at 0.05 or less:1.5~4.0A
(5)Input/output isolation voltage,AC 50/60Hz,1 minute:2500V
(6)Operation surface temperature:-25 to +85℃
(7)Storage temperature:-25 to +125℃

Features

(1)Various series:Standard series:For up to 10kHz operation;High-speed series:For up tp 40kHz operation.These series cover the full range of IGBT products.
(2)Bult-in photocoupler for high isolation voltage:2500V
(3)Single supply operation
(4)Bult-in overcurrent protection circuit
(5)Overcurrent detection output
(6)SIL package for high-density mounting

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201286101030984.jpg">
