Product Summary
The Microchip Technology Inc. 24AA512/24LC512/24FC512 (24XX512) is a 64K x 8 (512 Kbit) SerialElectrically Erasable PROM, capable of operationacross a broad voltage range (1.7V to 5.5V). It hasbeen developed for advanced, low-power applicationssuch as personal communications and data acquisi-tion. This device also has a page write capability of upto 128 bytes of data. This device is capable of bothrandom and sequential reads up to the 512K boundary.Functional address lines allow up to eight devices onthe same bus, for up to 4 Mbit address space. Thisdevice is available in the standard 8-pin plastic DIP,SOIJ, SOIC, TSSOP, DFN, and 14-lead TSSOP packages. The 24AA512 is also available in the 8-leadChip Scale package.
Parametrics
Absolute Maximum Ratings:
(1)VCC:6.5V; (2)All inputs and outputs w.r.t. VSS :-0.6V to VCC +1.0V; (3)Storage temperature:-65℃ to +150℃; (4)Ambient temperature with power applied:-40℃ to +125℃; (5)ESD protection on all pins: 4kV
Features
(1)Single Supply with Operation down to 1.7V for 24AA512 and 24FC512 Devices, 2.5V for24LC512 Devices; (2)Low-Power CMOS Technology:Active current 400 uA, typical;Standby current 100 nA, typical; (3)2-Wire Serial Interface, I2C Compatible; (4)Cascadable for up to Eight Devices; (5)Schmitt Trigger Inputs for Noise Suppression; (6)Output Slope Control to Eliminate Ground Bounce; (7)100 kHz and 400 kHz Clock Compatibility; (8)Page Write Time 5 ms max.; (9)Self-Timed Erase/Write Cycle; (10)128-Byte Page Write Buffer; (11)Hardware Write-Protect; (12)ESD Protection >4000V; (13)More than 1 Million Erase/Write Cycles; (14)Data Retention > 200 years; (15)Packages Include 8-lead PDIP, SOIJ, SOIC,TSSOP, DFN, Chip Scale and 14-lead TSSOP; (16)Pb-Free and RoHS Compliant; (17)Temperature Ranges:Industrial (I):-40℃ to +85℃;Automotive (E):-40℃ to +125℃
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271933822373.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

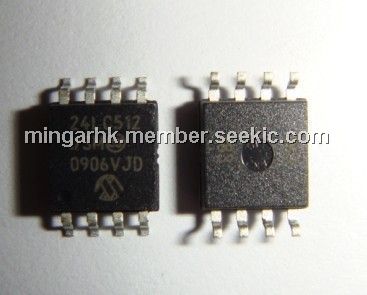

 24LC512-I/SM |
Microchip Technology |
EEPROM 64kx8 - 2.5V |
Data Sheet |
|
|
||||||||||||
|
24LC512-I/SMG |
Microchip Technology |
EEPROM 64kx8 - 2.5V Lead Free Package |
Data Sheet |
|
|
||||||||||||
