Product Summary
The HAS400-S is a kind of Current Transducer. It has some advantages as follows: (1)Easy mounting; (2)Small size and space saving; (3)Only one design for wide current ratings range; (4)High immunity to external interference. The typical applications include: (1)AC variable speed drives; (2)Static converters for DC motor drives; (3)Battery supplied applications; (4)Uninterruptible Power Supplies (UPS); (5)Switched Mode Power Supplies (SMPS); (6)Power supplies for welding applications.
Parametrics
Electrical data: (1)VC, Supply voltage (± 5 %): ± 15 V; (2)IC, Current consumption: ± 15 mA; (3)IOC, Overload capacity: 30,000 At; (4)Vd, R.m.s. voltage for AC isolation test, 50/60 Hz, 1 mn: 3 kV; (5)Vb, R.m.s. rated voltage, safe separation: 500 V; (6)RIS, Isolation resistance @ 500 VDC: > 1000 MW; (7)VOUT, Output voltage @ ± IPN, RL = 10 kW, TA = 25℃: ± 4V ±40 mV; (8)ROUT, Output internal resistance: approx. 100 Ω; (9)RL, Load resistance: > 1 kΩ.
Features
Features: (1)Hall effect measuring principle; (2)Galvanic isolation between primary and secondary circuit; (3)Isolation voltage 3000 V~; (4)Low power consumption; (5)Extended measuring range (3 x IPN); (6)Insulated plastic case made of polycarbonate PBT recognized according to UL 94-V0.

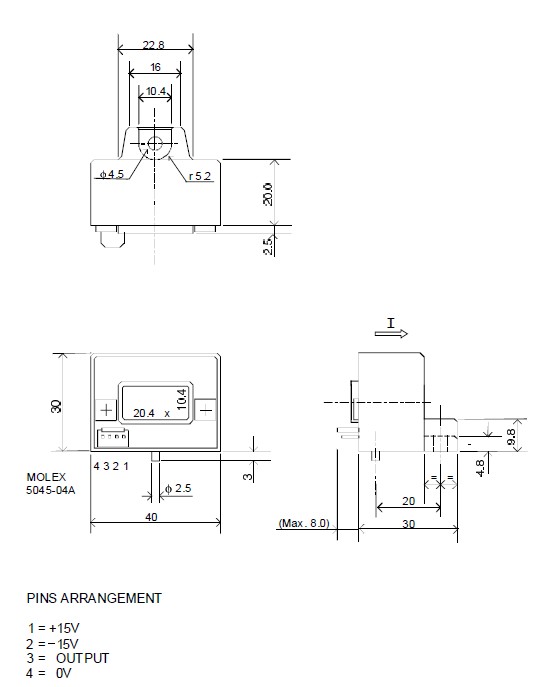

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HAS400-S |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HAS400-S/SP50 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HAS400-S4V/400A |
Other |
|
Data Sheet |
Negotiable |
|
||||
