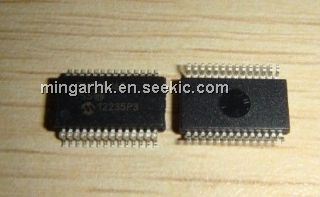

Product Summary

The ENC28J60 is designed to operate at 25 MHz with a crystal connected to the OSC1 and OSC2 pins. The ENC28J60

design requires the use of a parallel cut crystal. Use of a series cut crystal may give a frequency out of the crystal manufacturer

 specifications.

Parametrics

Absolute Maximum Ratings:

  1. Storage temperature:-65℃ to +150℃
  2. Ambient temperature under bias:-40℃ to +85℃ (Industrial);0℃ to +70℃ (Commercial)
  3. Voltage on VDD, VDDOSC, VDDPLL, VDDRX, and VDDTX, with respect to VSS:-0.3V to 3.6V
  4. Voltage on RESET, CS, SCK and SI, with respect to VSS: -0.3V to 6.0V
  5. Voltage on CLKOUT, SO, OSC1, OSC2, LEDA and LEDB, with respect to VSS:-0.3V to VDD + 0.3V
  6. Voltage on TPIN+/- and TPOUT+/- with respect to VSS:-0.3V to 5.0V
  7. VCAP with respect to VSS:-0.3V to 2.75V
  8. ESD protection on all pins:2 kV
  9. Current sourced or sunk by LEDA, LEDB:12 mA
  10. Current sourced or sunk by CLKOUT :8 mA
  11. Current sourced or sunk by INT and SO:4 mA

Features

Ethernet Controller Features
? IEEE 802.3 compatible Ethernet controller
? Integrated MAC and 10BASE-T PHY
? Supports one 10BASE-T port with automatic polarity detection and correction
? Supports Full and Half-Duplex modes
? Programmable automatic retransmit on collision
? Programmable padding and CRC generation
? Programmable automatic rejection of erroneous packets
? SPI Interface with clock speeds up to 20 MHz

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ENC28J60-I/SS
ENC28J60-I/SS
Microchip Technology
Peripheral Drivers & Components (PCIs) 8 KB RAM MAC&PHY Ethernet Controller
Data Sheet
0-1: $2.09
1-10: $1.67
10-25: $1.54
25-100: $1.39
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ENC20000
ENC20000

LARGE UTILITY ENCLOSURE NEMA 1
Data Sheet
0-1: $35.74
ENC28-GM-333
ENC28-GM-333
GHI Electronics
Ethernet Modules ETHERNET TYPE ENC28 GADGETEER MODULE
Data Sheet
0-1: $20.56
1-5: $20.55
ENC28J60
ENC28J60
Other

Data Sheet
Negotiable
ENC28J60/ML
ENC28J60/ML
Microchip Technology
Ethernet ICs 8 KB RAM MAC&PHY Ethernet Controller
Data Sheet
Negotiable
ENC28J60/SO
ENC28J60/SO
Microchip Technology
Ethernet ICs 8 KB RAM MAC&PHY Ethernet Controller
Data Sheet
Negotiable
ENC28J60/SOREL
ENC28J60/SOREL
Other

Data Sheet
Negotiable
