Product Summary

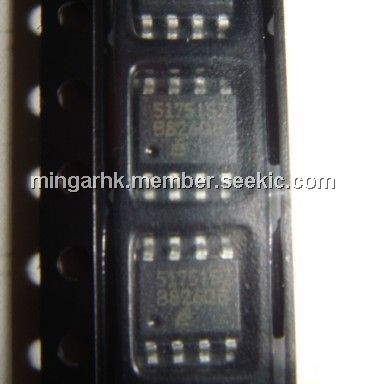

The EL5175 and EL5375 are single and triple high bandwidth amplifiers designed to extract the difference signal from noisy environments. They are primarily targeted for applications such as receiving signals from twisted-pair lines or any application where common mode noise injection
is likely to occur.
Parametrics
Absolute Maximum Ratings (TA = +25℃):
(1)Supply Voltage (VS+ to VS-):12V;
(2)Maximum Output Current.:±60mA;
(3)Operating Junction Temperature :+135℃;
(4)Ambient Operating Temperature :-40℃ to +85℃;
(5)Storage Temperature Range:-65℃ to +150℃;
(6)Pb-free reflow profile:see link below :http://www.intersil.com/pbfree/Pb-FreeReflow.asp
Features
(1)Differential input range ±2.3V;
(2)550MHz 3dB bandwidth;
(3)900V/μs slew rate;
(4)60mA maximum output current;
(5)Single 5V or dual ±5V supplies;
(6)Low power, 9.6mA per channel;
(7)Pb-free plus anneal available (RoHS compliant)
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20128664124339.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EL5175ISZ |
Intersil |
Differential Amplifiers EL5175ISZ 500MHZ REC |
Data Sheet |
|
|
||||||||||||
 |
EL5175ISZ-T13 |
|
IC LINE RCVR SGL 550MHZ 8-SOIC |
Data Sheet |
|
|
||||||||||||
|
EL5175ISZ-T7 |
|
IC LINE RCVR SGL 550MHZ 8-SOIC |
Data Sheet |
|
|
||||||||||||
