Product Summary
The BENCHMARQ bq2057 series advanced Lithium-Ion (Li-Ion) and Lithium-Polymer (Li-Pol) linear charge-management ICs are designed for costsensitive and compact portable electronics. They
combine high-accuracy current and voltage regulation,battery conditioning, temperature monitoring, charge termination, charge-status indication, and AutoComp
charge-rate compensation in a single 8-pin IC. MSOP,TSSOP, and SOIC package options are offered to fit a wide range of end applications.
Parametrics
Absolute maximum ratings over operating free-air temperature (unless otherwise noted):
- Supply voltage (VCC with respect to GND):-0.3 to +18 V
- Input voltage, SNS, BAT, TS, COMP (all with respect to GND):-0.3 V to Vcc+0.3 V
- Sink current (STAT pin) not to exceed PD:20 mA
- Source current (STAT pin) not to exceed PD:10 mA
- Output current (CC pin) not to exceed PD: 40 mA
- Total power dissipation, PD (at 25℃):300mW
- Operating free-air temperature range, TA :-20℃ to 70℃
- Storage temperature range, Tstg:-40℃ to 125℃
- Lead temperature (soldering, 10 s) :300℃
Features
- Ideal for Single (4.1 V or 4.2 V) and Dual-Cell (8.2 V or 8.4 V) Li-Ion or Li-Pol Packs
- Requires Small Number of ExternalComponents
- 0.3 V Dropout Voltage for Minimizing Heat Dissipation
- Better Than ±1% Voltage Regulation Accuracy With Preset Voltages
- AutoComp Dynamic Compensation of Battery Pack’s Internal Impedance to Reduce Charge Time
- Optional Cell-Temperature Monitoring Before and During Charge
- Integrated Voltage and Current Regulation With Programmable Charge-Current and Highor Low-Side Current Sensing
- Integrated Cell Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage Of Charge
- Charge Status Output for Single or Dual Led or Host Processor Interface
- Automatic Battery-Recharge Feature
- Charge Termination by Minimum Current
- Automatic Low-Power Sleep Mode When VCC Is Removed
- EVMs Available for Quick Evaluation
- Packaging: 8-Pin SOIC, 8-Pin TSSOP, 8-Pin MSOP
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

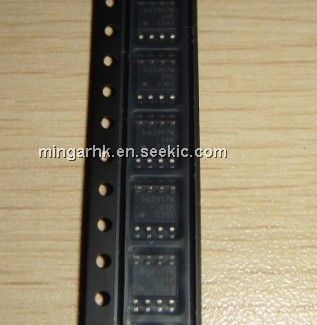

BQ2057WSNTR |
Texas Instruments |
Battery Management Li-Ion LDO Linear Charge Management IC |
Data Sheet |
|
|
|||||||||||||
BQ2057WSNTRG4 |
Texas Instruments |
Battery Management Li-Ion LDO Linear Charge Management IC |
Data Sheet |
|
|
