Product Summary

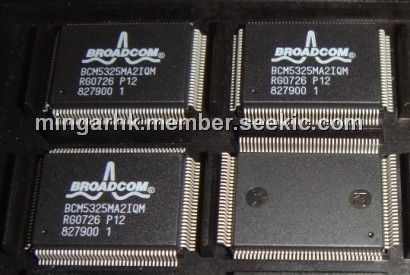

The Broadcom BCM5325M device is a highly integrated solution. It combines all the functions of a high-speed switch system—including packet buffer, PHY transceivers, media access controllers, address management, and a non-blocking switch fabric—into a single 0.18μ CMOS device. It complies with the IEEE 802.3, 802.3μ, and 802.3x specifications, including the MAC control PAUSE frame and autonegotiation subsections, providing compatibility with all industry-standard Ethernet and Fast Ethernet devices.
Features
(1)The highest level of silicon integration achieved for a five-port 10/100 Ethernet switch device; (2)Fourth generation switch on a chip; (3)The BCM5325M integrates:Five transceivers (802.3u compliant);Six media access controllers (802.x compliant);128-KB packet buffer;Non-blocking switch fabric; (4)Packet classification 802.1p QoS priority queues; (5)Port-based VLAN; (6)MII or 7-wire interface supports an additional 100FX or 100TX connection enabling a sixth user connection or uplink; (7)Supports up to 2K MAC addresses; (8)Flow control: full-duplex (802.3x) and half-duplex options supported; (9)Supports automatic address learning and aging; (10)Internal oscillator circuit; (11)Typical power consumption: < 1.4W; (12)128-pin PQFP package; (13)Management features:Low-cost MIB AutocastTM function;Hardware support for Simple Network Management Protocol(SNMP), Remote Network Monitoring (RMON) and Spanning Tree
