Product Summary

The ATmega164P/324P/644P is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the
ATmega164P/324P/644P achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Features

1.High-performance, Low-power AVR 8-bit Microcontroller
2.Advanced RISC Architecture
3.Nonvolatile Program and Data Memories
4.JTAG (IEEE std. 1149.1 Compliant) Interface
5.Peripheral Features
6.Special Microcontroller Features
– Power-on Reset and Programmable Brown-out Detection
– Internal Calibrated RC Oscillator
– External and Internal Interrupt Sources
– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby
and Extended Standby
7. I/O and Packages
– 32 Programmable I/O Lines
– 40-pin PDIP, 44-lead TQFP, and 44-pad QFN/MLF
8.Operating Voltages
– 1.8 - 5.5V for ATmega164P/324P/644PV
– 2.7 - 5.5V for ATmega164P/324P/644P
9.Speed Grades
– ATmega164P/324P/644PV: 0 - 4MHz @ 1.8 - 5.5V, 0 - 10MHz @ 2.7 - 5.5V
– ATmega164P/324P/644P: 0 - 10MHz @ 2.7 - 5.5V, 0 - 20MHz @ 4.5 - 5.5V
10.Power Consumption at 1 MHz, 1.8V, 25℃ for ATmega164P/324P/644P
– Active: 338/398/TBD μA
– Power-down Mode:0.035 /0.027/TBD μA
– Power-save Mode:0.5 /0.5/TBD μA (Including 32 kHz RTC)

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

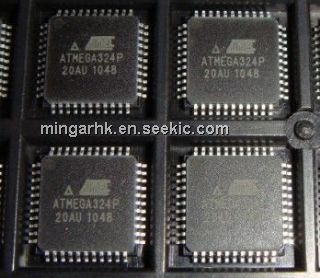

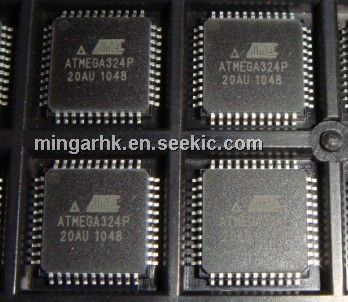

ATMEGA324P-20AU
ATMEGA324P-20AU
Atmel
8-bit Microcontrollers (MCU) AVR 32KB 1KB EE 20MHz 2KB SRAM 5V
Data Sheet
0-1: $2.99
1-10: $2.86
10-25: $2.65
25-100: $2.36
ATMEGA324P-20AUR
ATMEGA324P-20AUR
Atmel
8-bit Microcontrollers (MCU) AVR 32KB FLSH 1KB EE 2KB SRAM-20MHz IND5V
Data Sheet
0-1670: $2.42
1670-2000: $2.42
