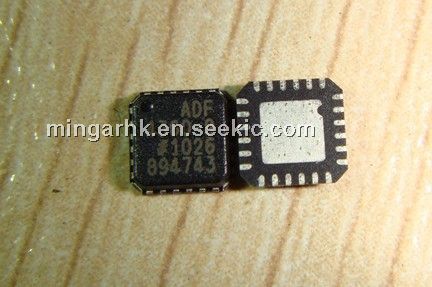

Product Summary

The ADF4360-9 is an integrated integer-N synthesizer and voltage-controlled oscillator (VCO). External inductors set the
ADF4360-9 center frequency. This allows a VCO frequency range of between 65 MHz and 400 MHz.

Parametrics

ABSOLUTE MAXIMUM RATINGS (TA = 25℃, unless otherwise noted):

  1. AVDD to GND:-0.3 V to +3.9 V
  2. AVDD to DVDD:-0.3 V to +0.3 V
  3. VVCO to GND:-0.3 V to +3.9 V
  4. VVCO to AVDD:-0.3 V to +0.3 V
  5. Digital Input/Output Voltage to GND:-0.3 V to VDD + 0.3 V
  6. Analog Input/Output Voltage to GND:-0.3 V to VDD + 0.3 V
  7. REFIN to GND:-0.3 V to VDD + 0.3 V
  8. Operating Temperature Range:-40℃to + 85℃
  9. Storage Temperature Range:-65℃to +150℃
  10. Maximum Junction Temperature:150℃
  11. LFCSP θJA Thermal Impedance,Paddle Soldered:50℃/W;Paddle Not Soldered:88℃/W
  12. Lead Temperature, Soldering,Vapor Phase (60 sec): 215℃;Infrared (15 sec) :220℃


Features

  1. Primary output frequency range: 65 MHz to 400 MHz
  2. Auxiliary divider from 2 to 31, output from 1.1 MHz to 200 MHz
  3. 3.0 V to 3.6 V power supply
  4. 1.8 V logic compatibility
  5. Integer-N synthesizer
  6. Programmable output power level
  7. 3-wire serial interface
  8. Digital lock detect
  9. Software power-down mode

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADF4360-9BCPZ
ADF4360-9BCPZ

IC SYNTHESIZER W/ADJ VCO 24LFCSP
Data Sheet
0-79: $3.46
ADF4360-9BCPZRL
ADF4360-9BCPZRL

IC SYNTHESIZER W/ADJ VCO 24LFCSP
Data Sheet
0-5000: $2.25
ADF4360-9BCPZRL7
ADF4360-9BCPZRL7

IC SYNTHESIZER W/ADJ VCO 24LFCSP
Data Sheet
0-1: $4.36
1-10: $3.92
10-25: $3.57
25-100: $3.23
100-250: $2.96
250-500: $2.70
