Product Summary

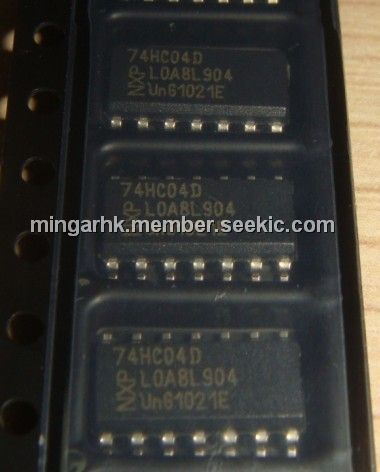

The 74HC/HCT04 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL(LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT04 provide six inverting buffers.

Parametrics

LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134); voltages are referenced to GND (ground = 0 V):
(1)supply voltage:-0.5 to +7.0V; (2)input diode current,VI <-0.5 V or VI >VCC + 0.5 V:20mA; (3)output diode current,Vo <-0.5 V or Vo >VCC + 0.5 V:20mA; (4)output source or sink current,-0.5V<Vo <VCC + 0.5 V:±25mA; (5)VCC or GND current:±50mA; (6)storage temperature:-65 to +150℃; (7)power dissipation,Tamb = -40 to +125 ℃:500mW

Features

(1)Complies with JEDEC standard no. 8-1A; (2)ESD protection:HBM EIA/JESD22-A114-A exceeds 2000 V;MM EIA/JESD22-A115-A exceeds 200 V.; (3)Specified from -40 to +85 ℃ and -40 to +125 ℃

Diagrams

<P><IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201272054919348.jpg"></P>

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
74HC04DB
74HC04DB
NXP Semiconductors
Inverters HEX INVERTER
Data Sheet
Negotiable
74HC04DTR2G
74HC04DTR2G
ON Semiconductor
Inverters HEX INVERTER
Data Sheet
0-4000: $0.06
4000-5000: $0.06
5000-10000: $0.05
10000-25000: $0.05
74HC04DR2G
74HC04DR2G
ON Semiconductor
Inverters HEX INVERTER
Data Sheet
Negotiable
74HC04DB,118
74HC04DB,118
NXP Semiconductors
Inverters HEX INVERTER
Data Sheet
0-1: $0.14
1-25: $0.13
25-100: $0.11
100-250: $0.10
74HC04DB,112
74HC04DB,112
NXP Semiconductors
Inverters HEX INVERTER
Data Sheet
0-1: $0.33
1-25: $0.24
25-100: $0.21
100-250: $0.18
74HC04D,653
74HC04D,653
NXP Semiconductors
Inverters HEX INVERTER
Data Sheet
0-1: $0.13
1-25: $0.11
25-100: $0.10
100-250: $0.08
74HC04D,652
74HC04D,652
NXP Semiconductors
Inverters HEX INV LSTTL COMPAT
Data Sheet
0-1: $0.05
1-25: $0.05
25-100: $0.05
100-250: $0.04
74HC04D
74HC04D
NXP Semiconductors
Inverters HEX INV LSTTL COMPAT
Data Sheet
Negotiable
