Product Summary

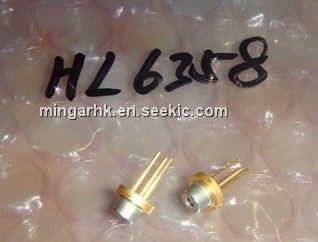

HL6358MG-A

Parametrics

Absolute Maximum Ratings:

  1. Optical output power, PO:12 mW
  2. LD reverse voltage ,VR(LD):2 V
  3. PD reverse voltage ,VR(PD):30 V
  4. Operating temperature, Topr:-10 to +50℃
  5. Storage temperature, Tstg:-40 to +85℃


Features

1.Visible light output : 639 nm Typ
2.Single longitudinal mode
3.Optical output power : 10 mW  CW
4.Low operating current : 40 mA Typ
5.Low operating voltage : 2.5 V Max
6.Operating temperature : +50℃
7.TE mode oscillation

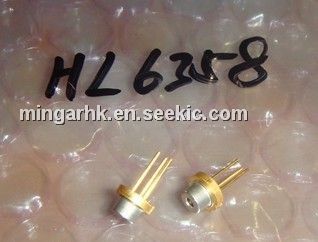

Diagrams
